Compact, fast and extremely versatile for optimum performance.

Max tube Ø32mm - 1.26"
Working force8T
Clamping force12T
Stroke120mm - 4.72"

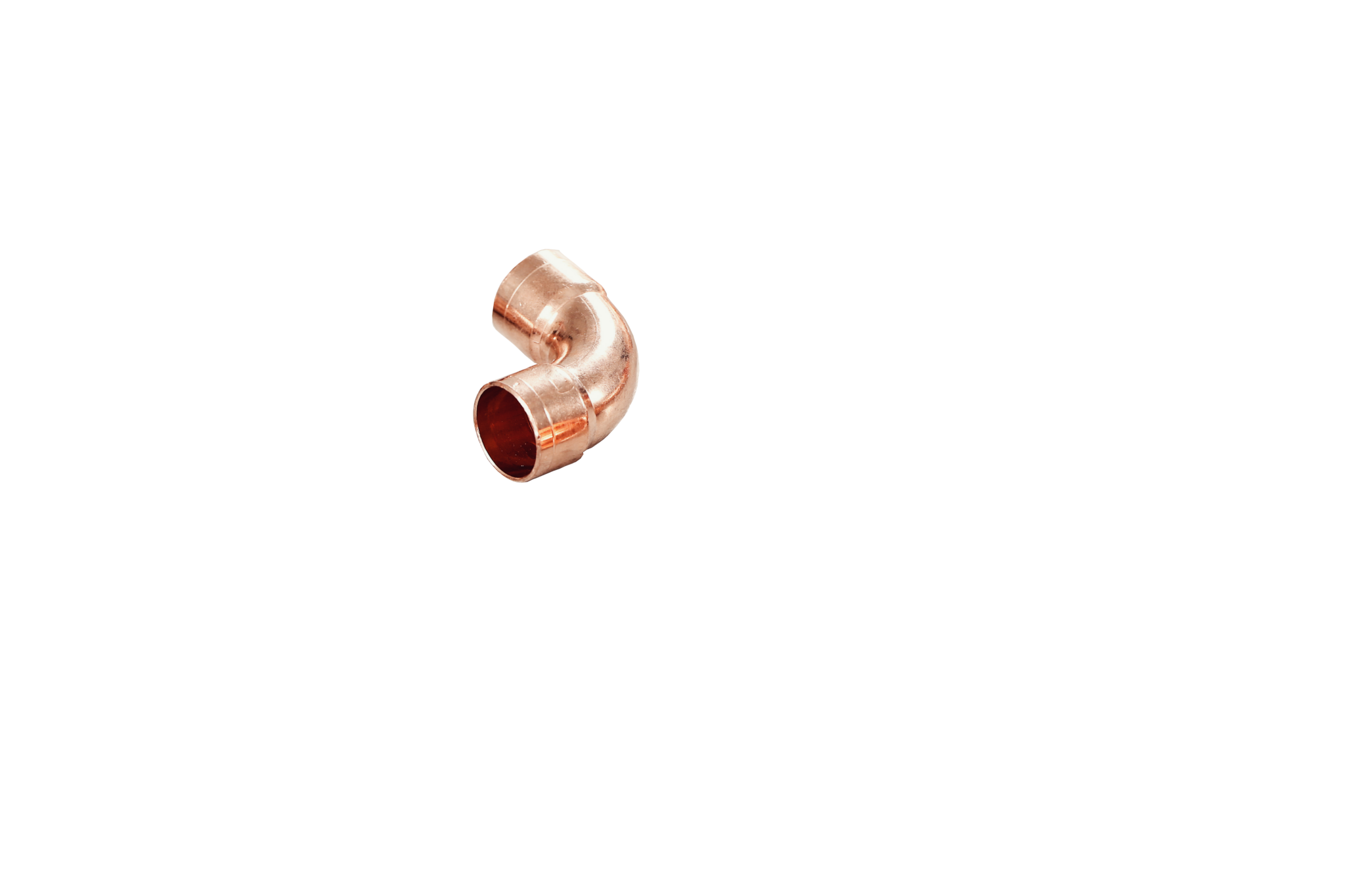

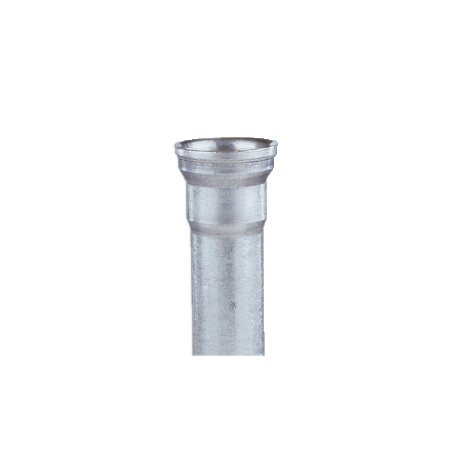

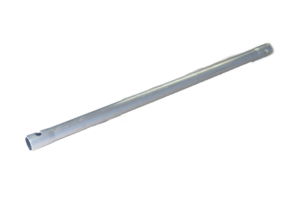

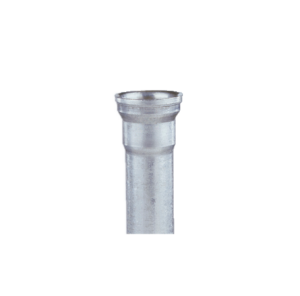

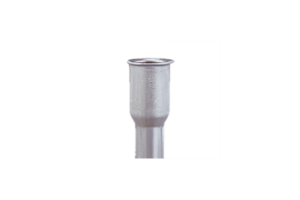

Parts made on NUMAFORM 8C

Main features

  •  2 CNC axes (rotary tool changer and Ram forming)
  • 5-position tool changer
  •  Compact and fast
  •  Integrable into a fully automated production cell
  •  Forming before or after bending with easy access around the tooling
  •  Material: copper, aluminum, steel, stainless steel, titanium, inconel
  •  Quick tooling changeover [patended solution]
  •  Super fast production changeover time

Man / Machine interface

  •  Industrial PC based software
  • Multilingual dialog and programming interface on a 12’’ touch screen
  • Auxiliary input/output for the control of external units
  • Connects to internet for remote assistance and chat room

Leading manufacturer in productivity solutions for wire, tube and flatstock forming

With the expertise, history and experience of 9 brands gathered under one banner  Numalliance is dedicated to satisfy your needs. From standard or custom built machines and workcells for tube, wire and flat stock bending, to special hydraulic presses, and all other secondary operations your end product might require.

Leading manufacturer in productivity solutions for wire, tube and flatstock bending, Numalliance conceives and realises standard or custom-made installations, integrating ancillary operations such as endforming, flattening, punching, assembly, welding, upsetting, chamfering, machining, threading… as well as inline dimensional control and self correction.

You are a producer of metal part in wire, tube or flatsotck parts, and look for a cost effective way of doing so. Numalliance will innovate with you and propose the optimized and high-performance solutions tailored to your specific objective
