Range : Tube bending machines

Technical Presentation of the tube bending machine TE Small

Main features

  • From 0.12″ to 0.79×0.08″ / 3 to 20×2 mm
  • Applications : Automotive : hydraulic and fluid transfer lines, H.V.A.C.C., ERG tubes
  • Air et Space : hydraulic piping circulation control wing, fuel, structure
  • Electric bending machines
  • Stackable multi-radii
  • Draw bending with and without mandrel
  •  Patent pending on left and right bending
  • Orbital bending head
  • Easy integration in automated production cells
  • Possibility to combine bending with complementary operations
Small Tube Benders - TE06LR - Numalliance

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
TE06LRTE16LRTE16STE18LRTE20/TE20LR
Max tube ø.25x.03" at 58 Ksi / 6,35x0,75 mm at 400N/mm²
.315x.03" at 36 Ksi / 8x0,75 mm at 250 N/mm²
.625x.08" at 58 Ksi / 16x2 mm at 400N/mm²
.80x.08" at 36 Ksi / 20x2 mm at 250N/mm²
.625x.08" at 58 Ksi / 16x2 mm at 400N/mm²
.80x.08" at 36 Ksi / 20x2 mm at 250N/mm²
71x.08” at 58 Ksi/ 18x2mm at 400N/mm² 80x.08” at 36 Ksi/20x2mm at 250N/mm² .80x.08" at 58 Ksi / 20x2 mm at 400N/mm²
.625x.08" at 85 Ksi / 16x2 mm at 600 N/mm² 600N/mm²
Tube length47 to 78" / 1200 to 2000 mm47 to 118" / 1200 to 3000 mm32" / 800 mm32" / 1200 to 3000mm 79 to 157" / 2000 to 3000 mm
Max bending radius1" / 25 mm2" ( or 2.4" if 1 tool ) / 50 mm (or 62 if 1 tool)2,4" / 62 mm2” (or 2.4” if 1 stack) 50mm (or 62mm if 1 stack)2" / 50 mm
Bending tools3
Left and right
4
Left and right
1 jusqu'à 3
Left and right
4 stacks Left and right4
Left and/or right

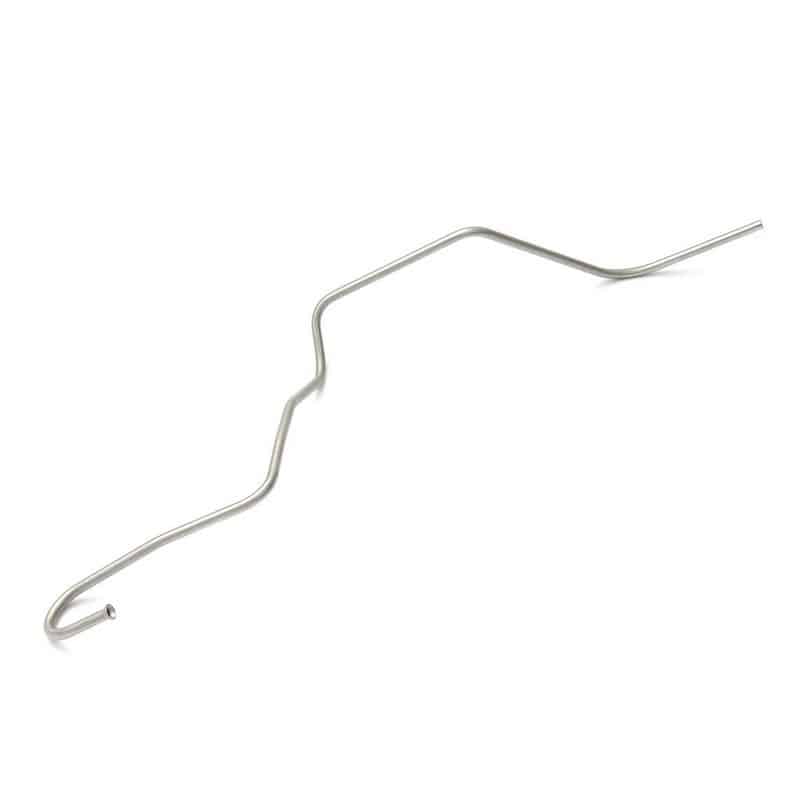

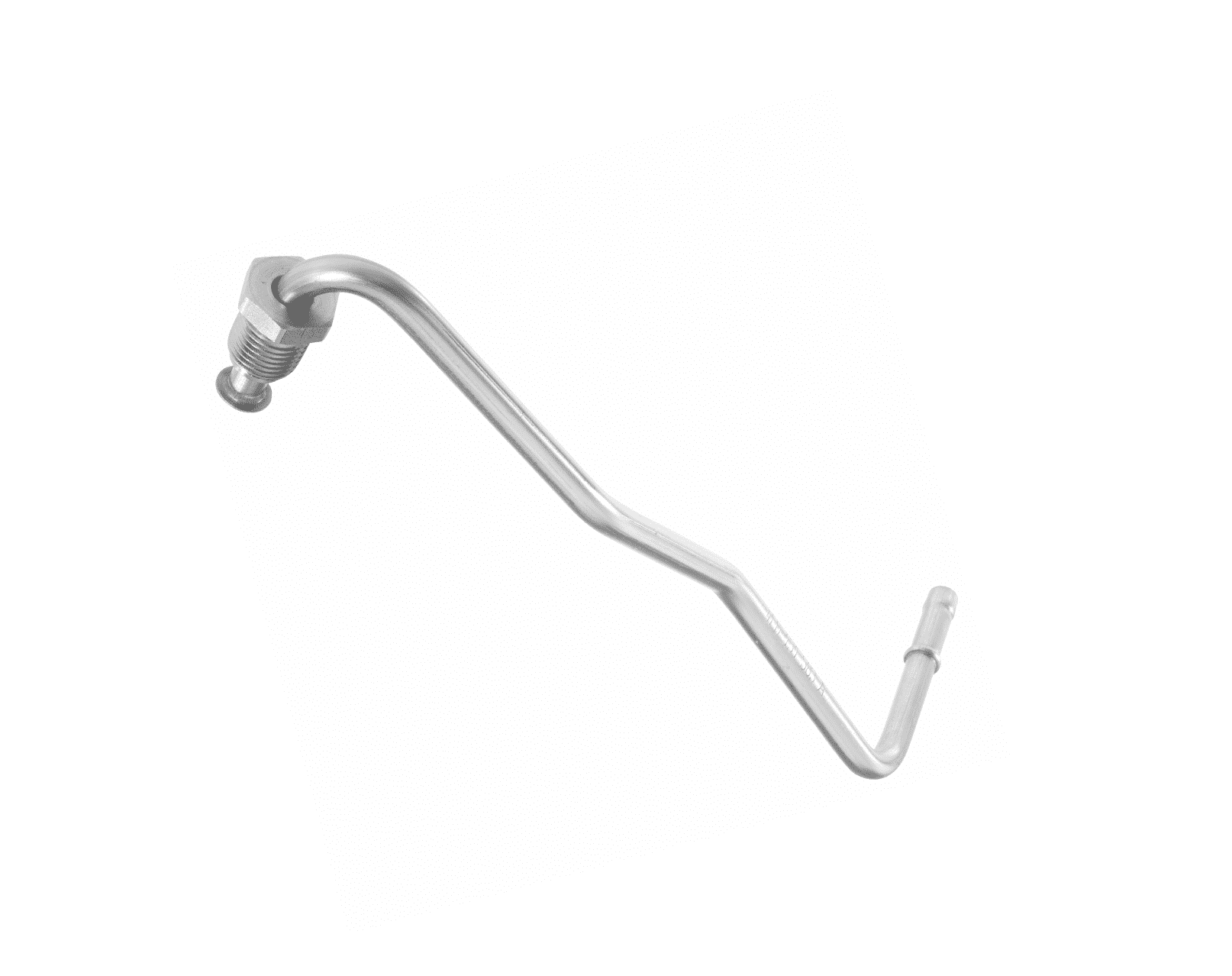

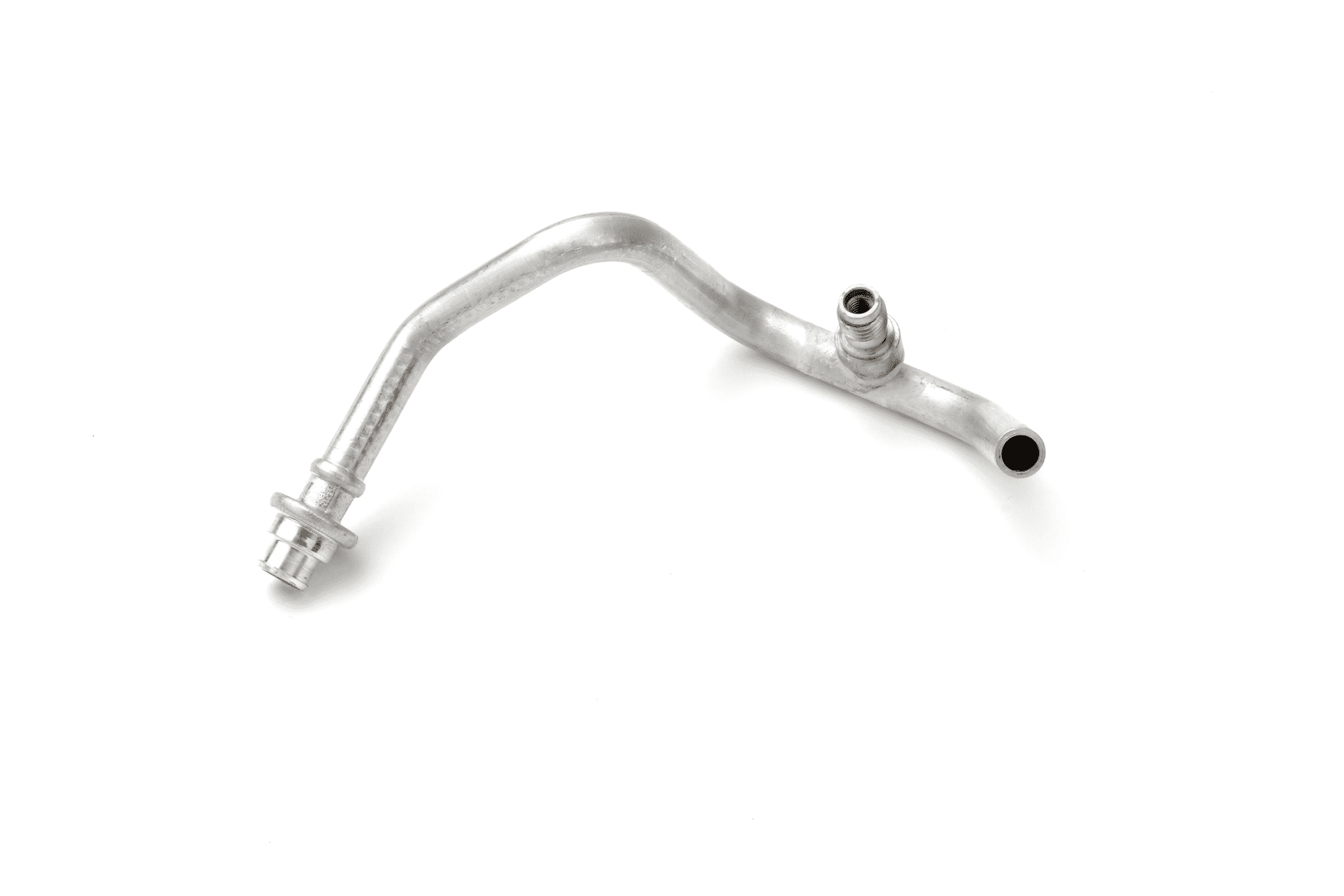

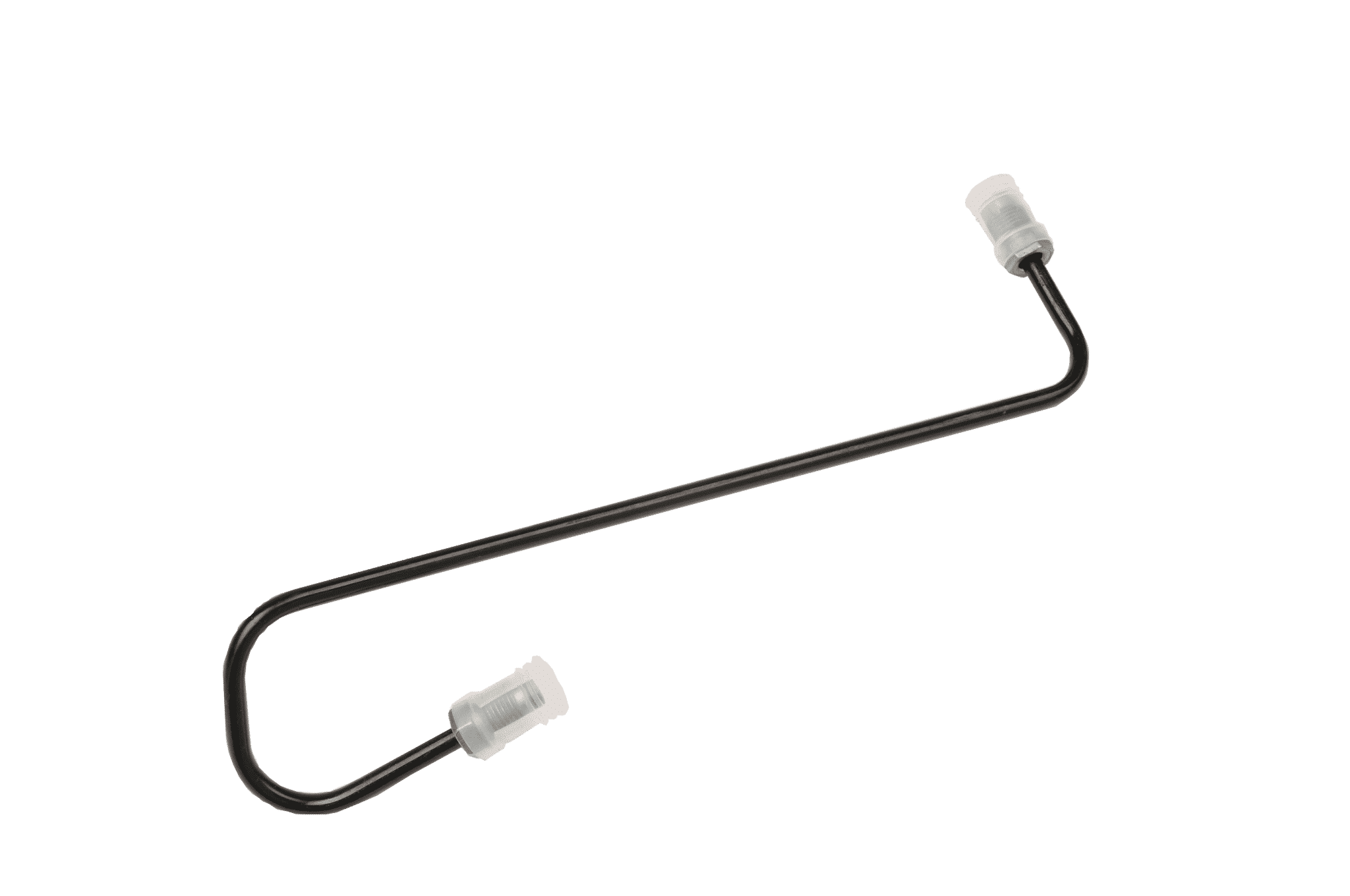

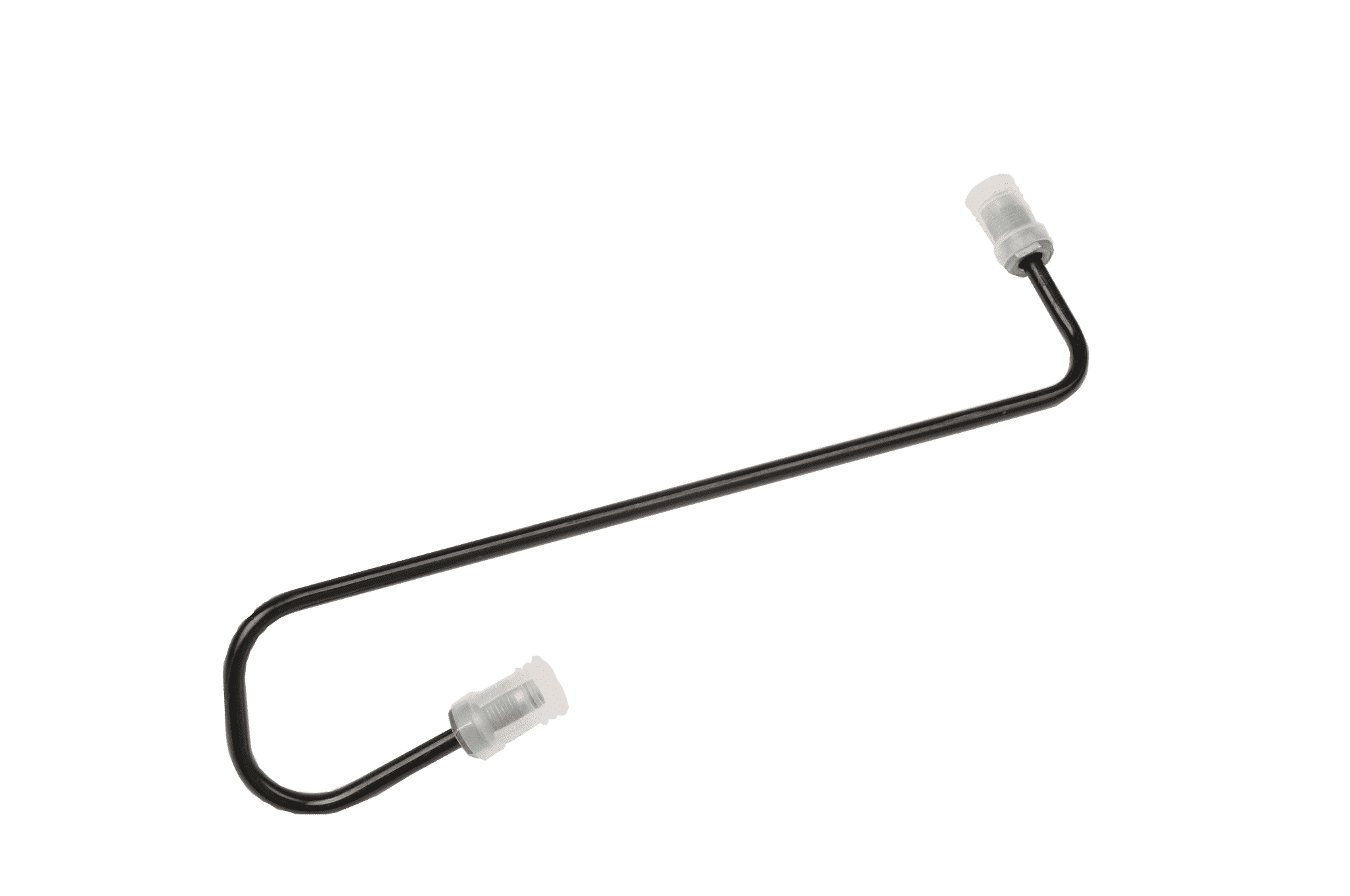

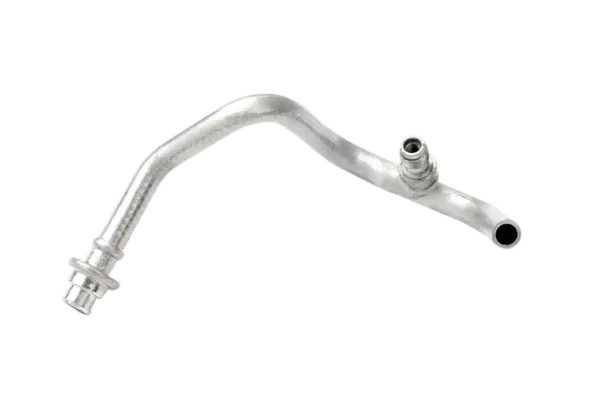

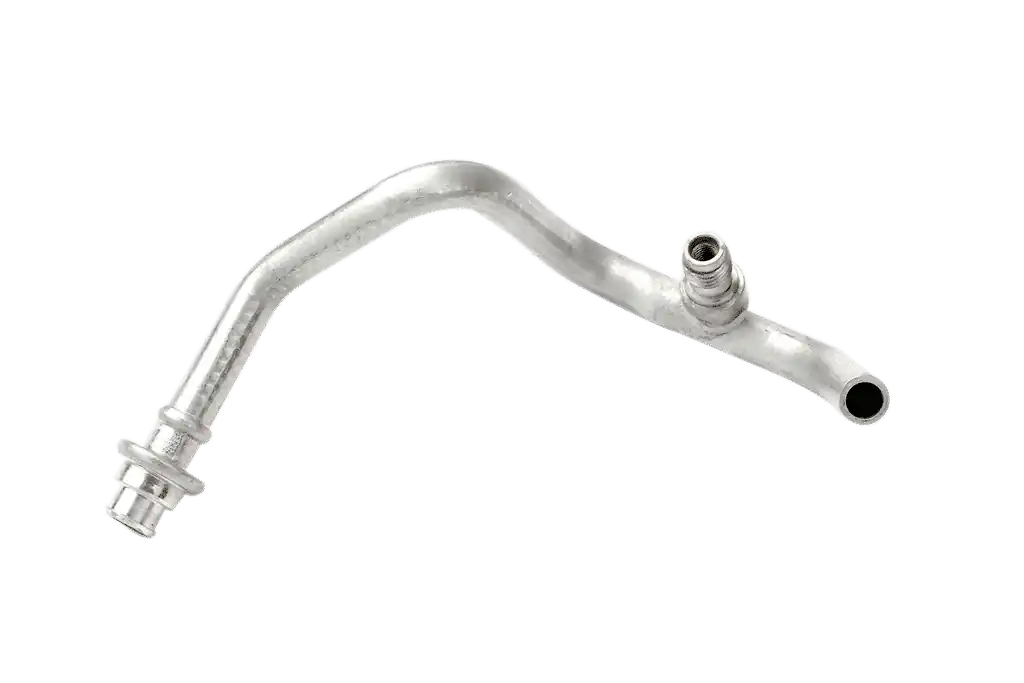

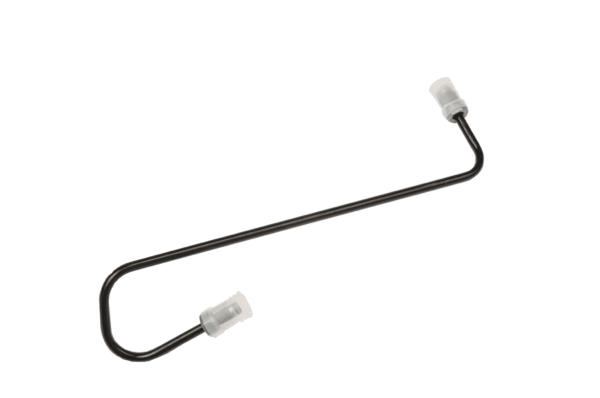

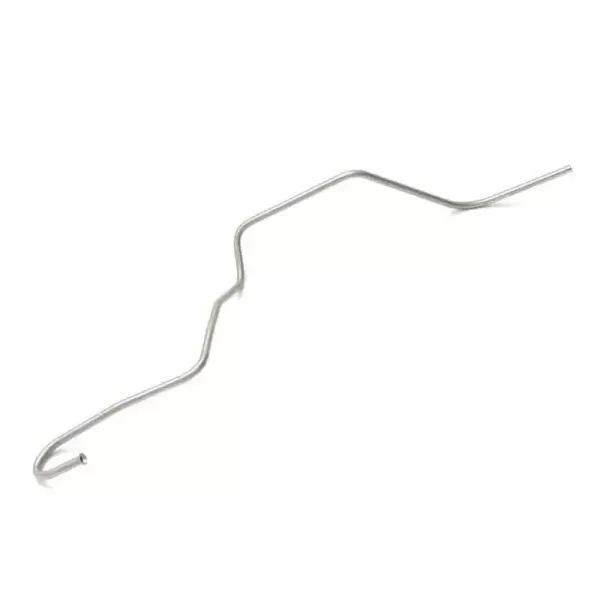

Example of parts made with the tube bending machine TE Small
