Range : Sequential machines

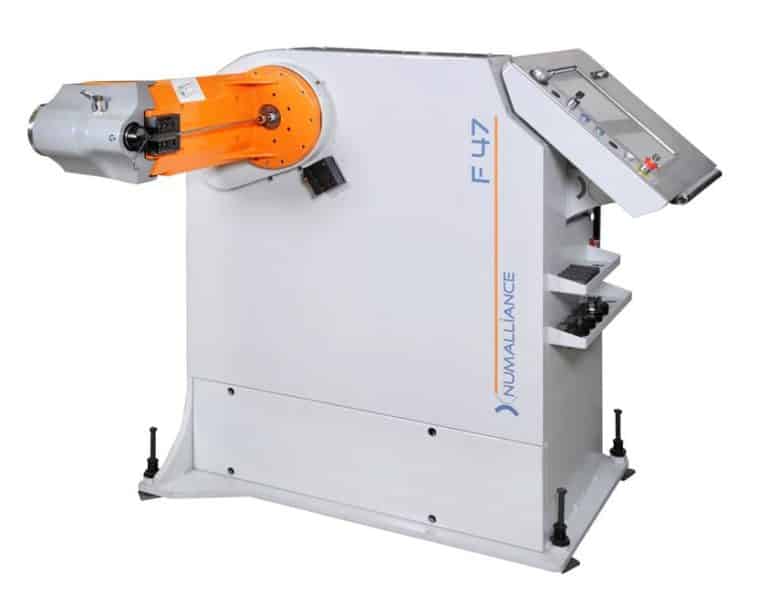

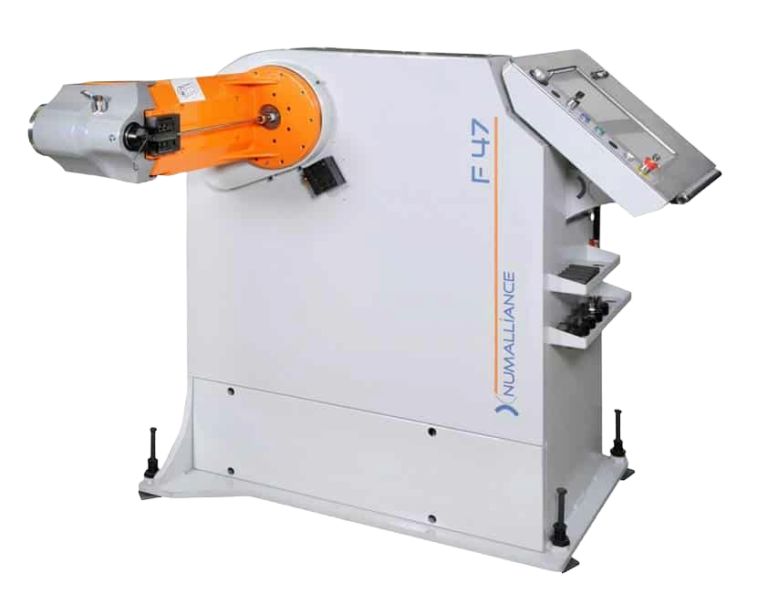

Technical Presentation of the F45 / F46 / F47

100% electric wire bender, ideal for manufacturing small or long parts at high speeds.

Main features

  • From 0.04 to 0.28″
  • Wire
  • 3D bending from coil
  • Fast production of parts from prototypes to large series
  • Compact machine, limited footprint
  • Fast and easy programming of parts
  • 1 bending and cutting nose enabling to cut the wire with zero straight length
  • Push bending nose
  • Safety enclosure for the machine and de-coiler
  • Tooling compatible with Robomac 2 heads
  • Tooling compatible with Zig Zag tools (Robomac)

New

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
F45F46F47
Wire capacity up to 600 N/mm² or 85 KsiFrom 1 to 5 mmFrom .04 to .28"From 2 to 7 mm

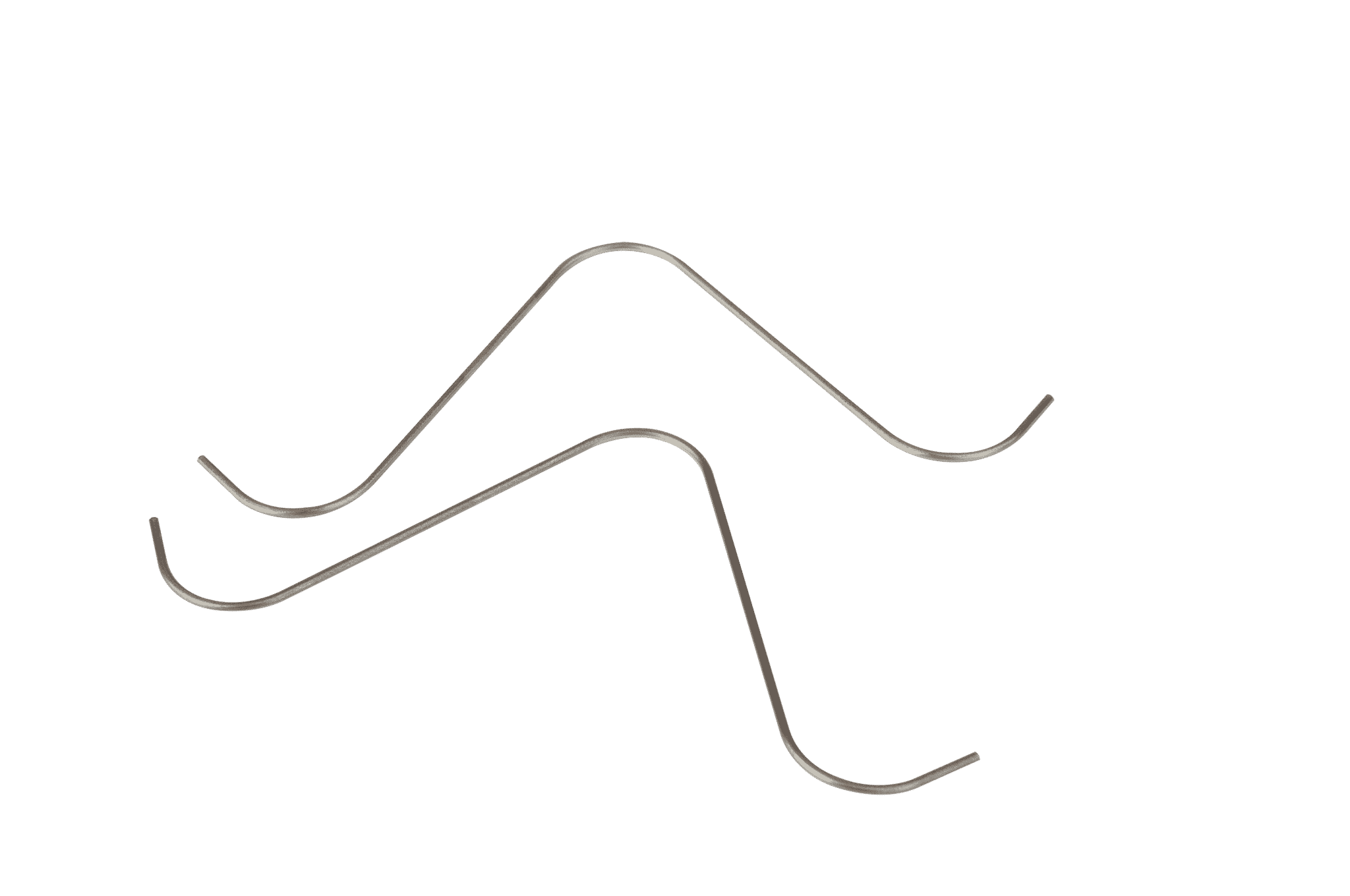

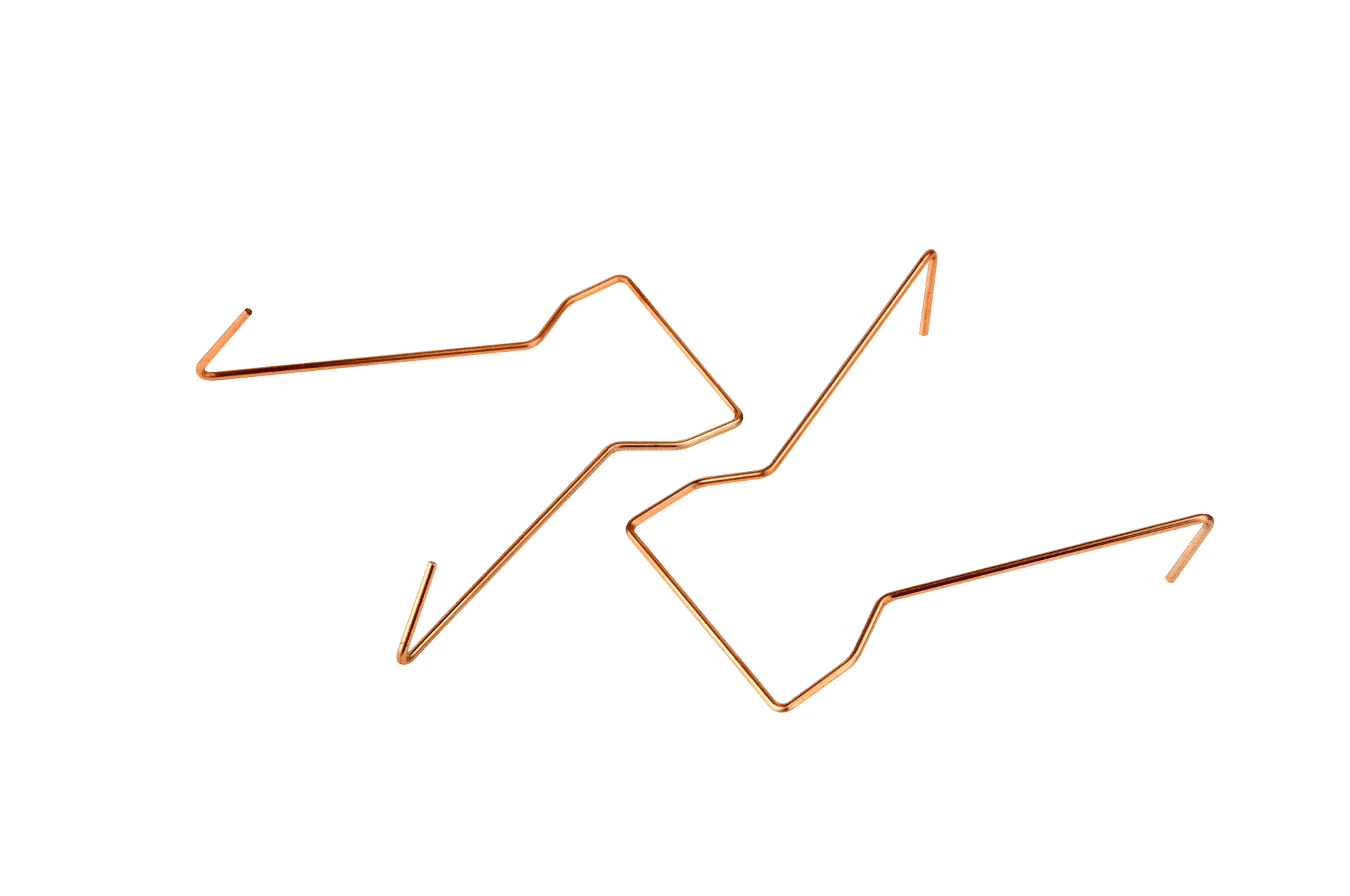

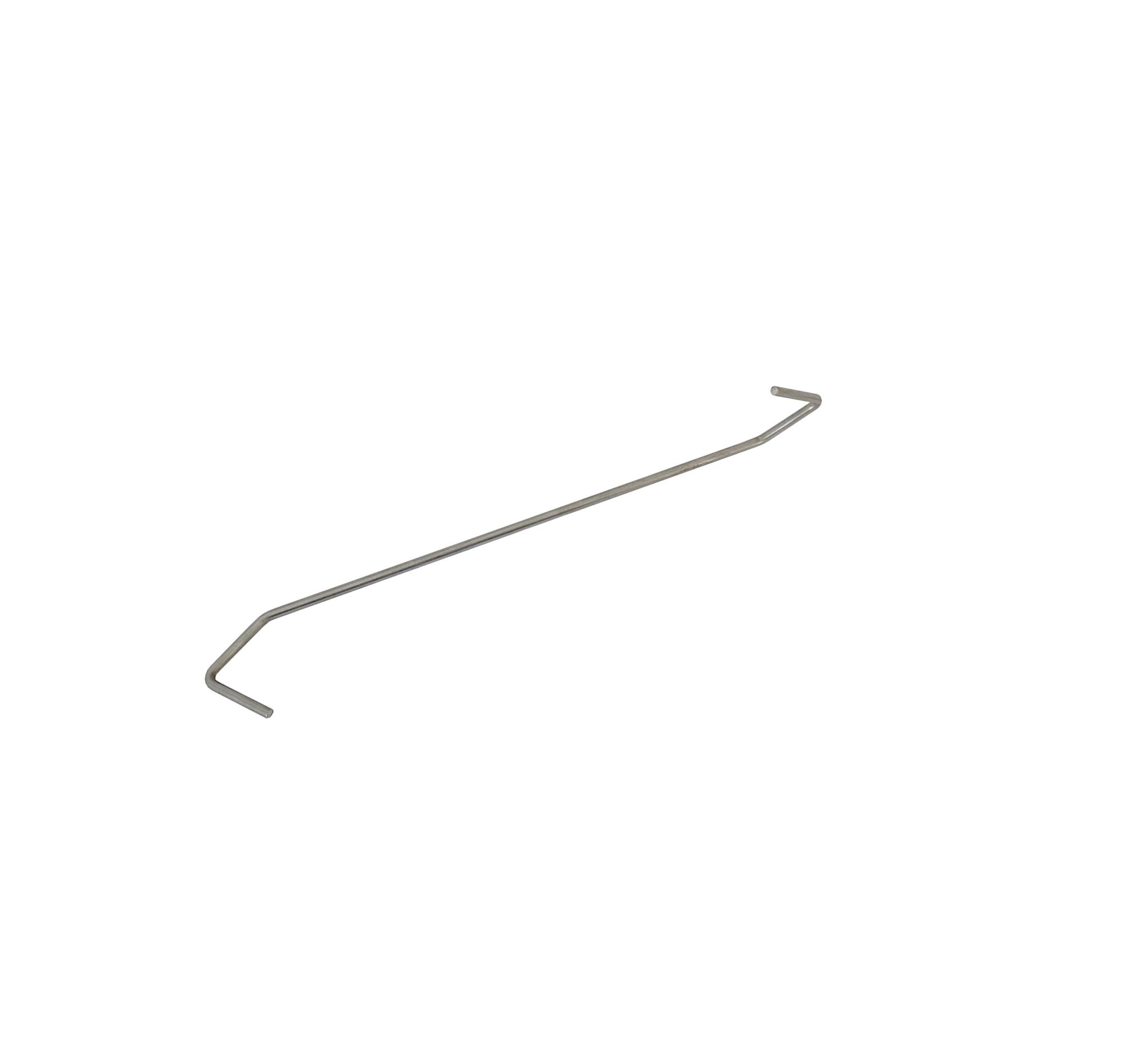

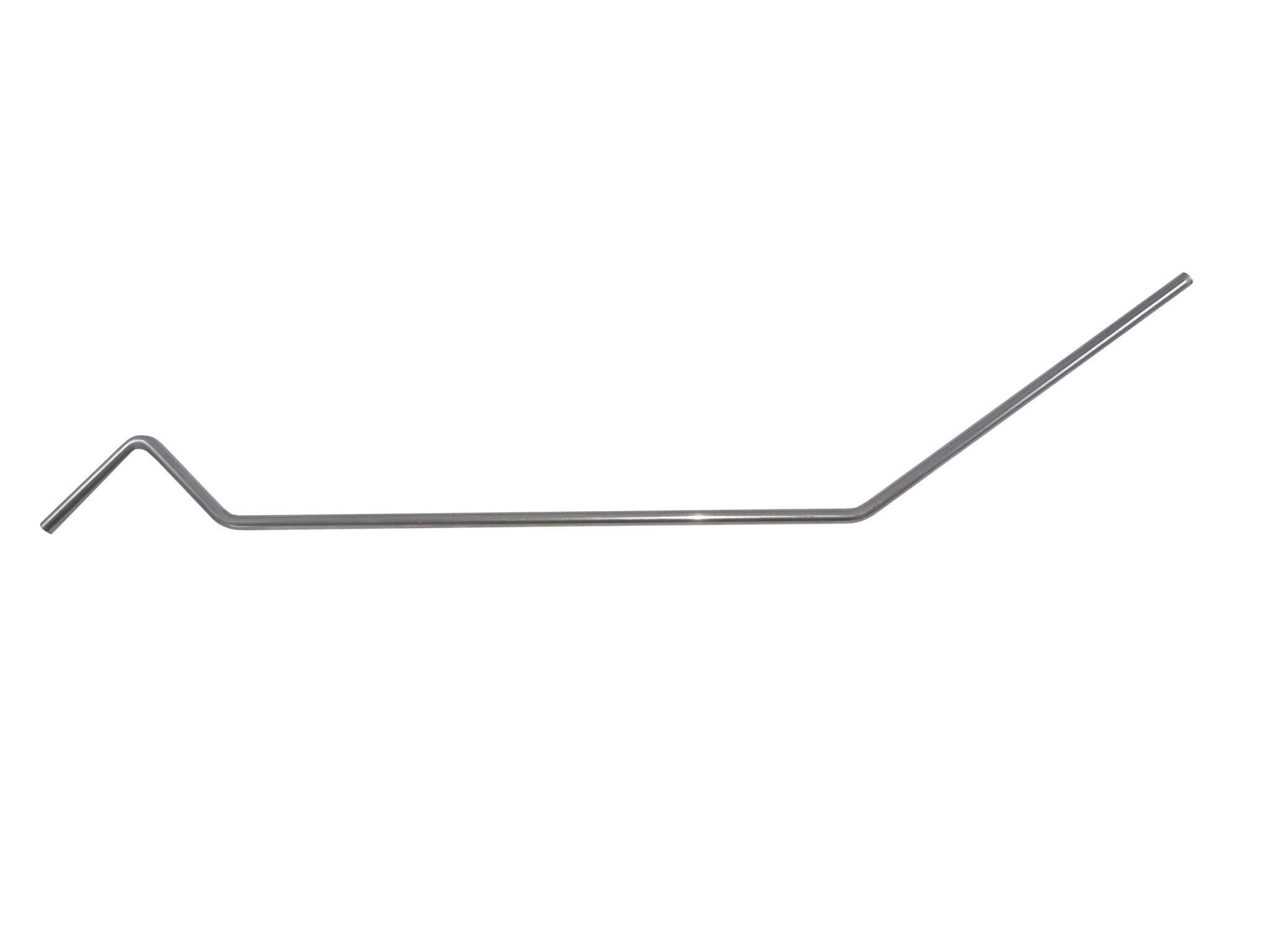

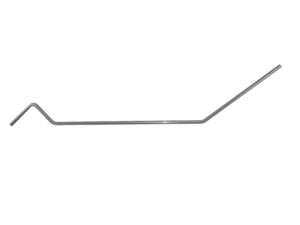

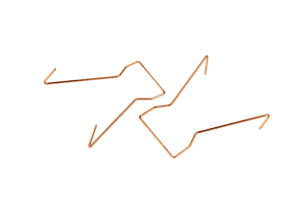

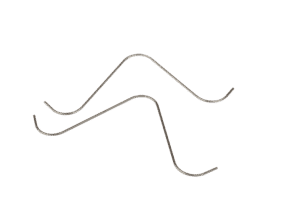

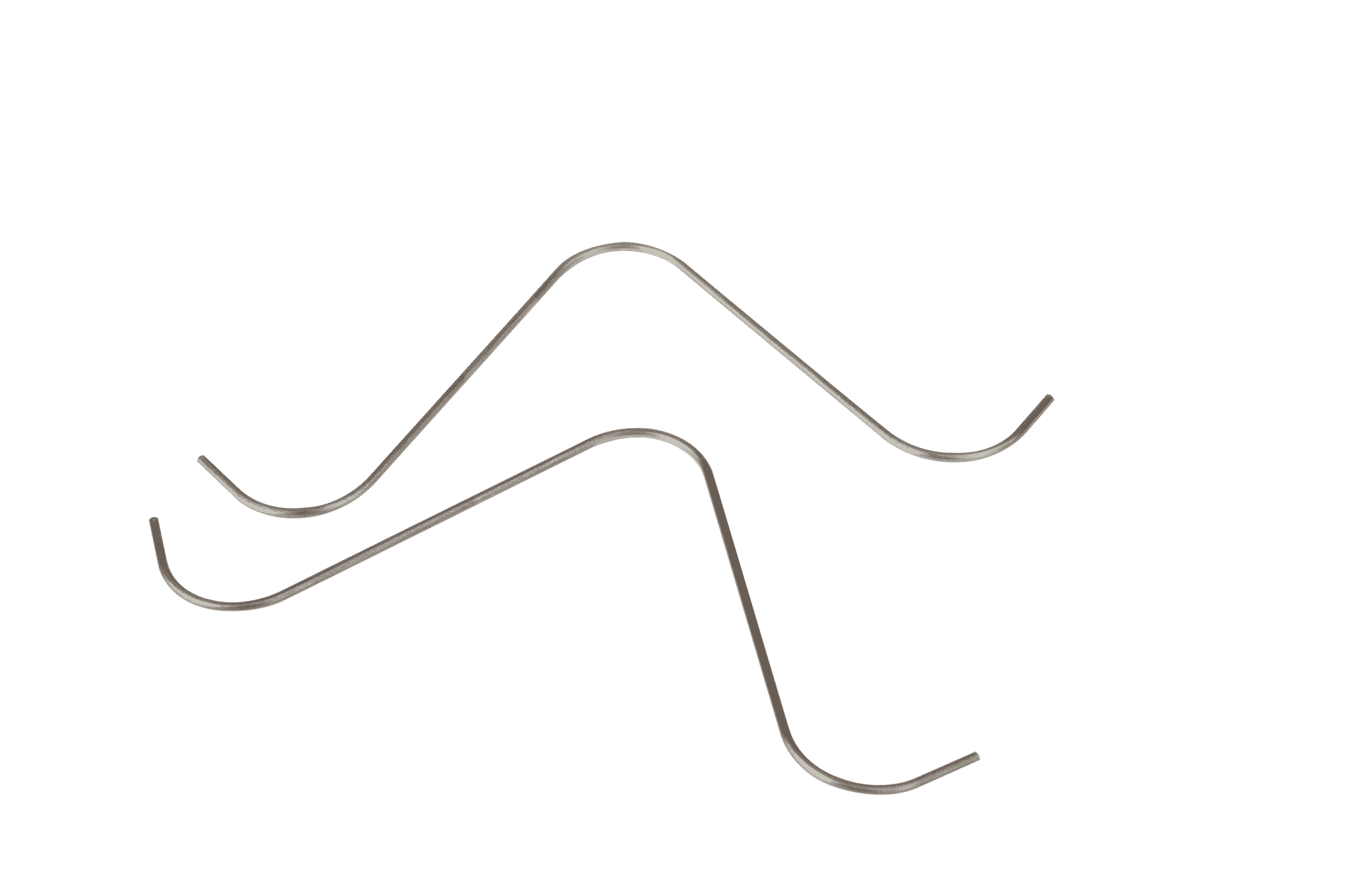

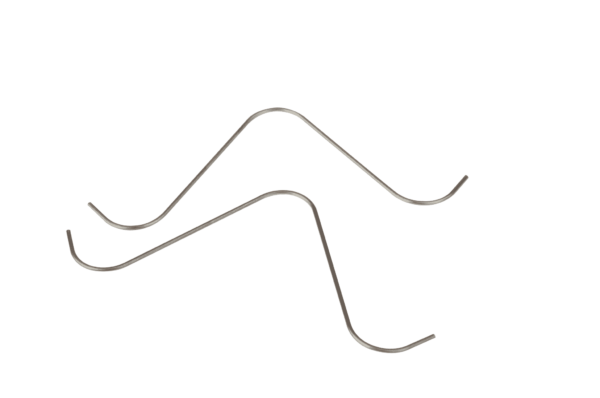

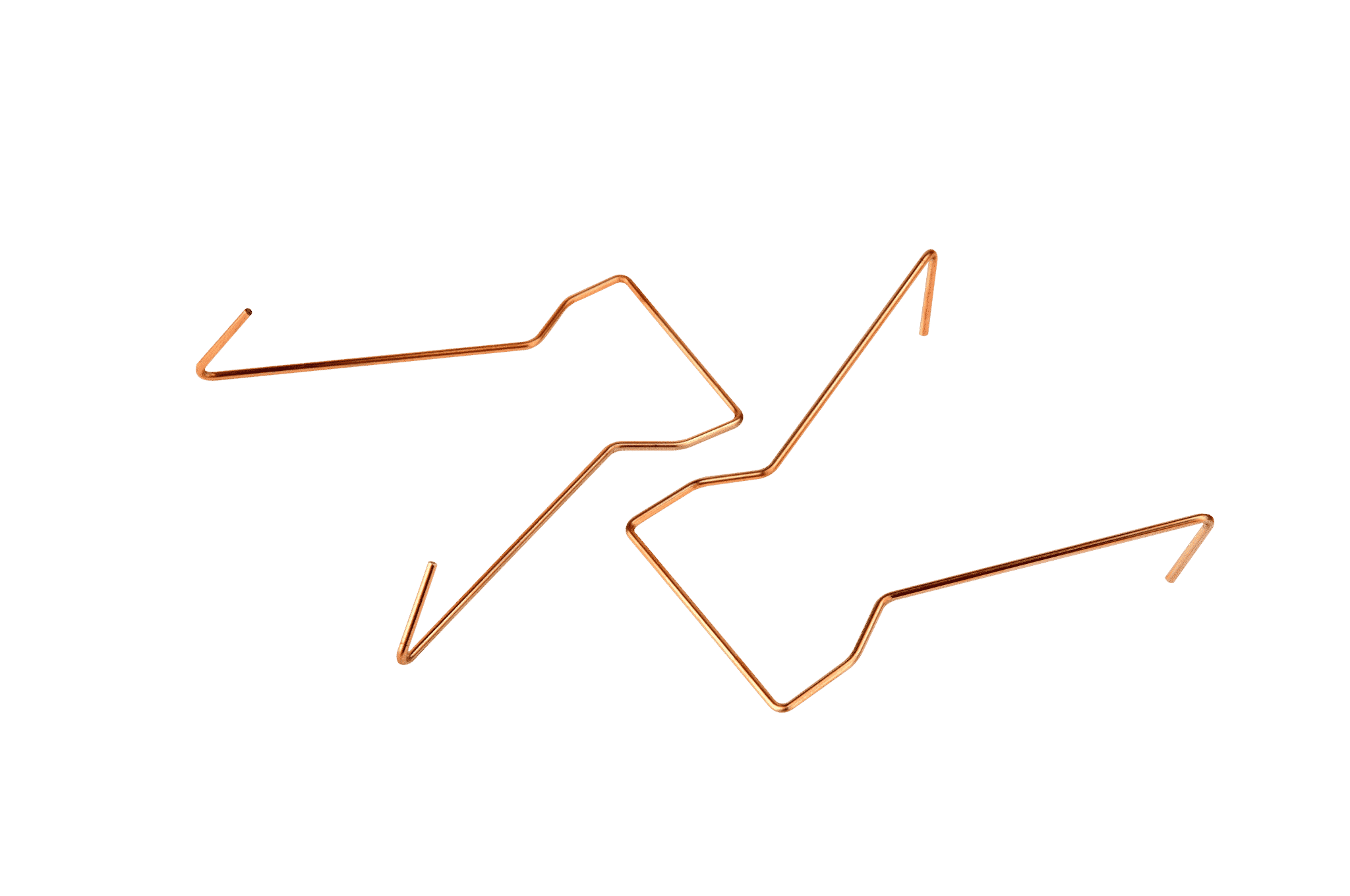

Example of parts made with the F45 / F46 / F47

Our services

Services - Télémaintenance

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the F45 / F46 / F47
