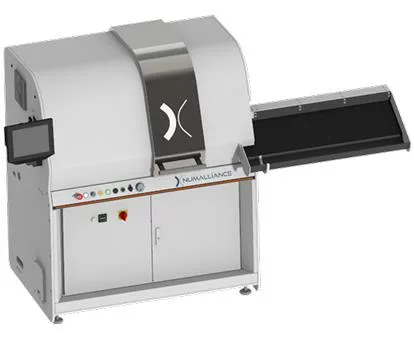

| NUMACUT W05 SFC | NUMACUT W08 SFC | |
|---|---|---|
| Wire capacity up to 550 N/mm² | From Ø.04 to .20" / Ø 1 to 5 mm | From Ø.12 to .325" / Ø 3 to 8 mm |
| Shortest cutting length with mechanical stop | .26" / 80 mm | .26" / 80 mm |
| Shortest cutting length without mechanical stop | Wire ø x 1.5 | Wire ø x 1.5 |
| Power | 25 kW | 25 kW |
| Machine dimensions | 2600 x 1300 x 1750 (with ramp) 1600 x 1300 x 1750 (without ramp) | 2600 x 1300 x 1750 (with ramp) 1600 x 1300 x 1750 (without ramp) |
| Weight | 4,400 lbs 2,000 kg | 4,400 lbs 2,000 kg |

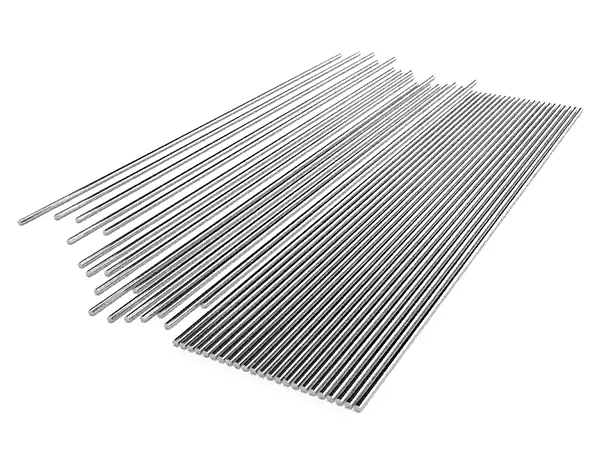

Parts made on NUMACUT W SFC
Main features
- Engineered for fast transition
- Wire adjustment during production
- Automatic wire introduction
- Ideal for soft wire (rotors with reduced inertia for instant stop-and-go
function during cut) - Machine with brushless motors
- Easy and fast programming thanks to touch screen interface
- Rotary Straightener with single die concept
- Machine built lower production noise
- Control of batches production
- Quick tooling changeover
- Can be standalone or intregrated in a work cell
Man / Machine interface
- Touch&Form software
- Multilingual dialog and programming interface on a 12″ touch screen
- Additional I/O (optional)
- Internet connection: remote assistance and chat room
- Industry 5.0
- Simulation program
- Simulation tool to facilitate debugging
- Program sequence in slow motion
