Technical Presentation of the CNC tube bender TE Large

Main features

  • From .80 to 6x.12″ / 20 to 152×3 mm
  • Applications example : Automotive H.V.A.C.A., structure
  • Chassis parts, exhaust system
  • Hydroformed parts outlines
  • Electric bending machines
  • Stackable multi-radii
  • Draw bending with and without mandrel and roll bending
  • Fully automated systems for quick tooling change over
  • Curved bending
  • Easy integration in automated production cells
  • Possibility to combine bending with complementary operations
TE Large - Machine de cintrage de tube

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
TE50ITE63/TE63LRTE80TE102TE152
Max tube ø 2x.08" at 85 Ksi / 50x2 mm at 600N/mm²2.5x.08" at 58 Ksi / 76x2 mm at 400N/mm²3.2x.08" at 58 Ksi / 80x2 mm at 400N/mm²4x.08" at 85 Ksi / 102x2 mm at 600N/mm² 6x.08” at 85 KSI/ 152x2 mm at 600N/mm²
Tube length120"/3000 mm120" / 3000 mm120" / 3000 mm120" / 3000 mm120" / 3000 mm
Max bending radius11.8 / 300 mm11" / 280 mm11.8" / 300 mm11.8" / 300 mm19.7" / 500 mm
Bending tools6
Left or right
4
Left or right
5 (in option)
Right
3 (optional)
Right
1
right

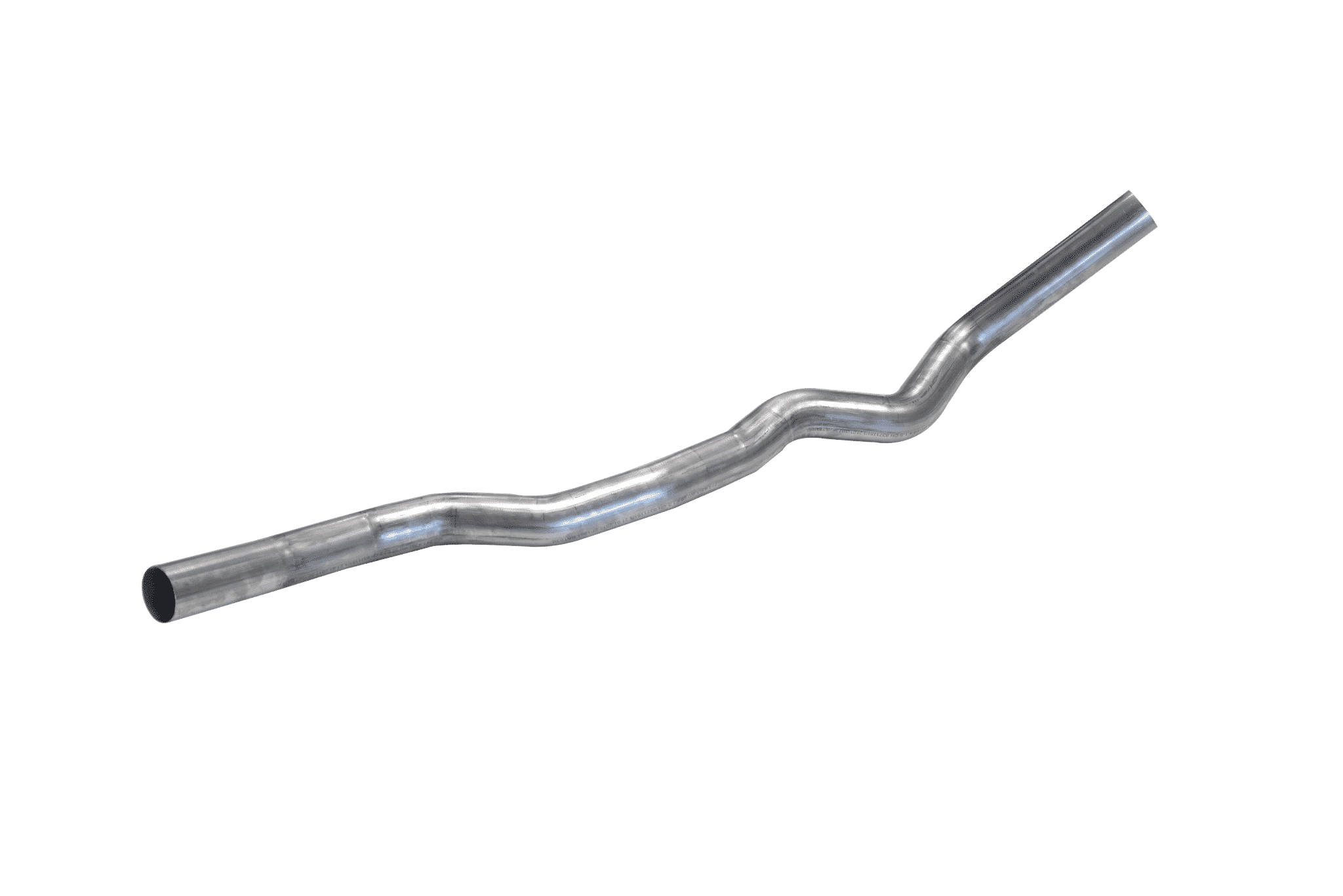

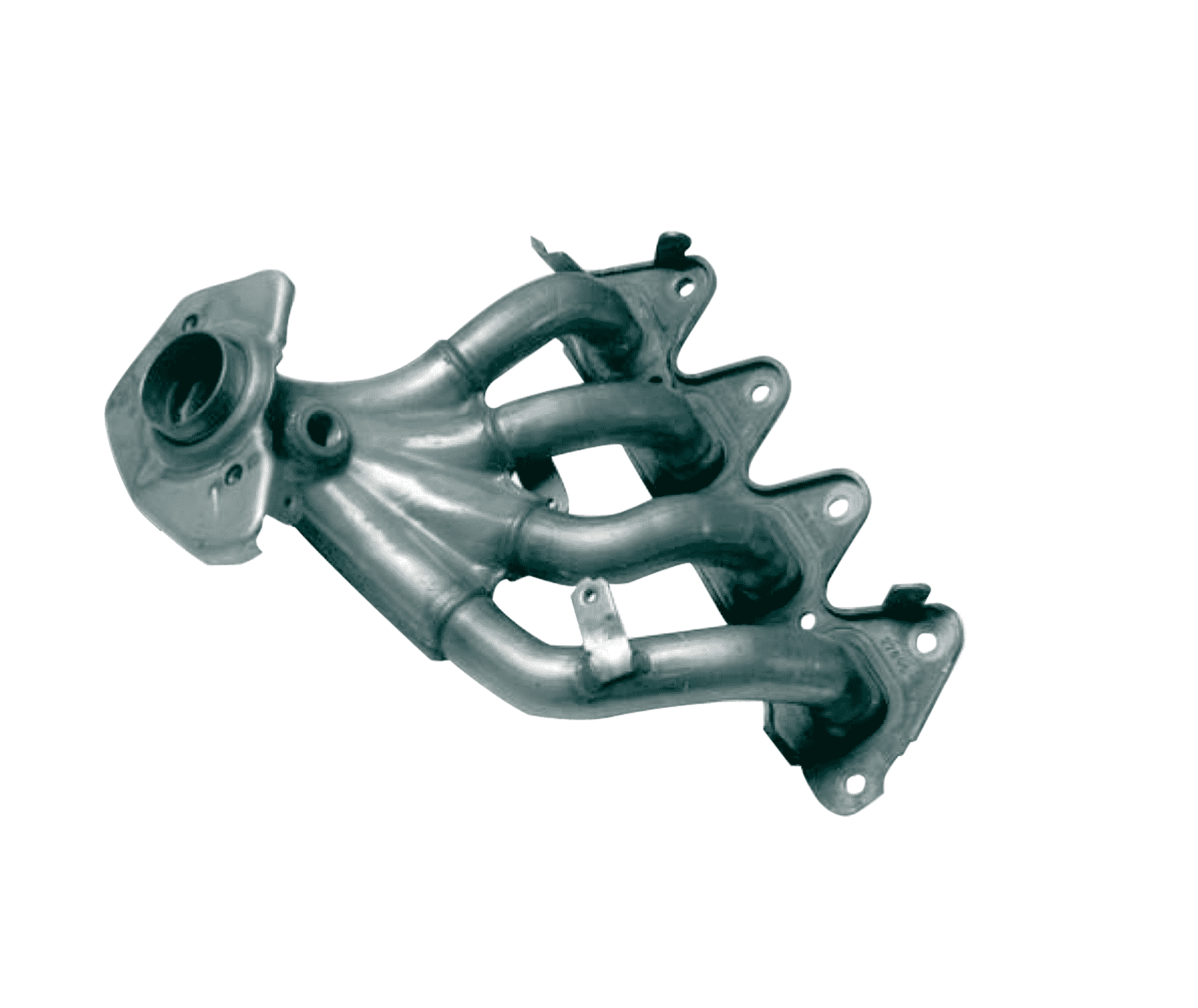

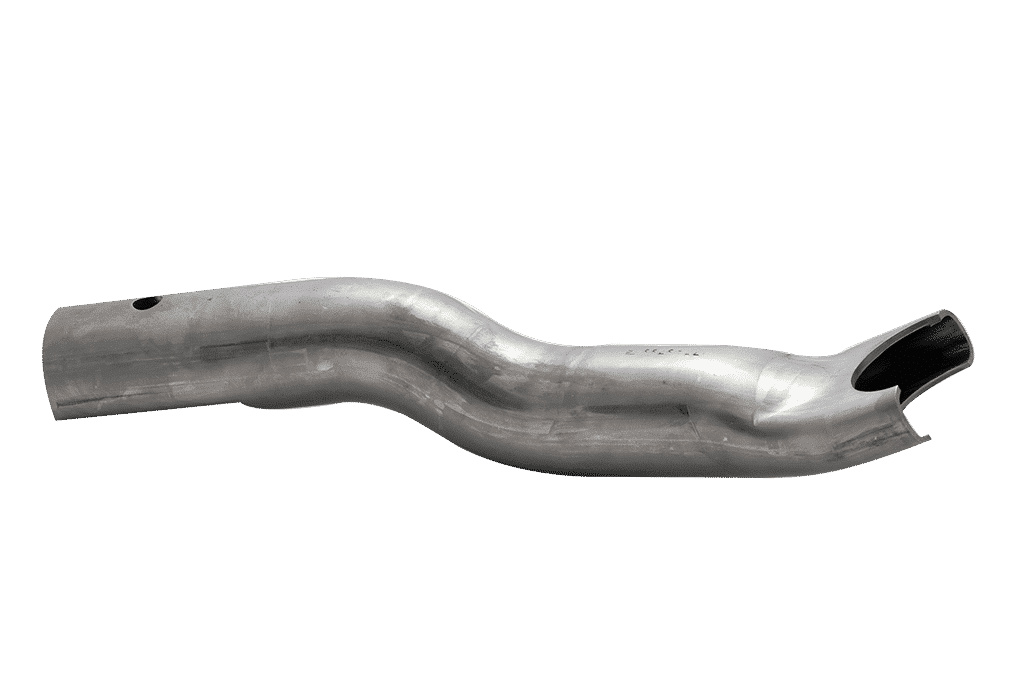

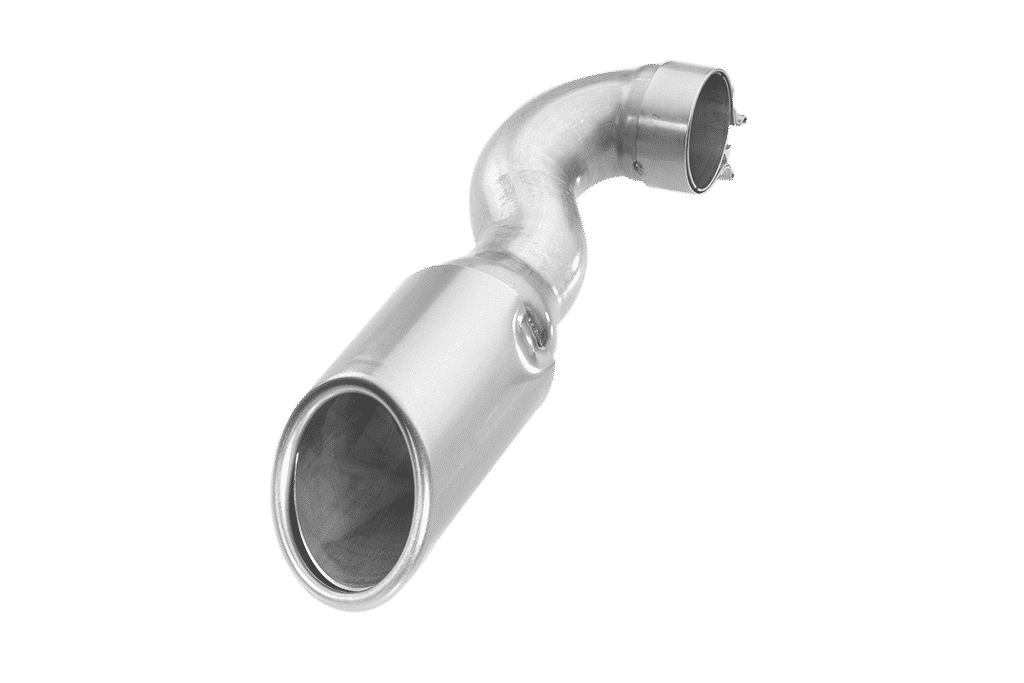

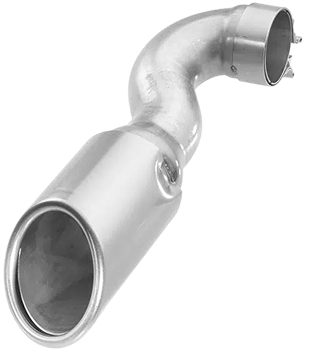

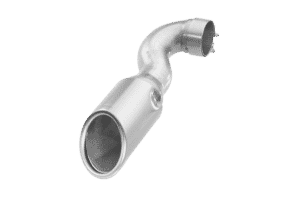

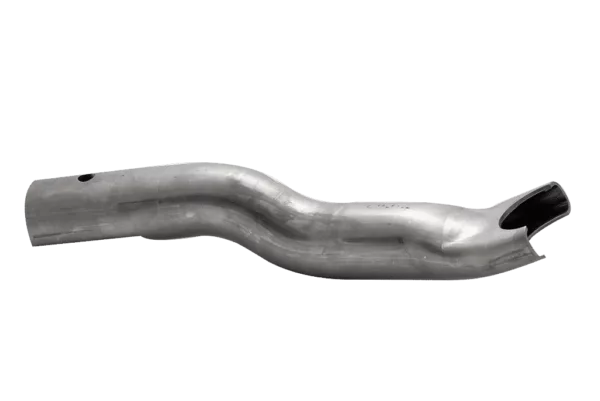

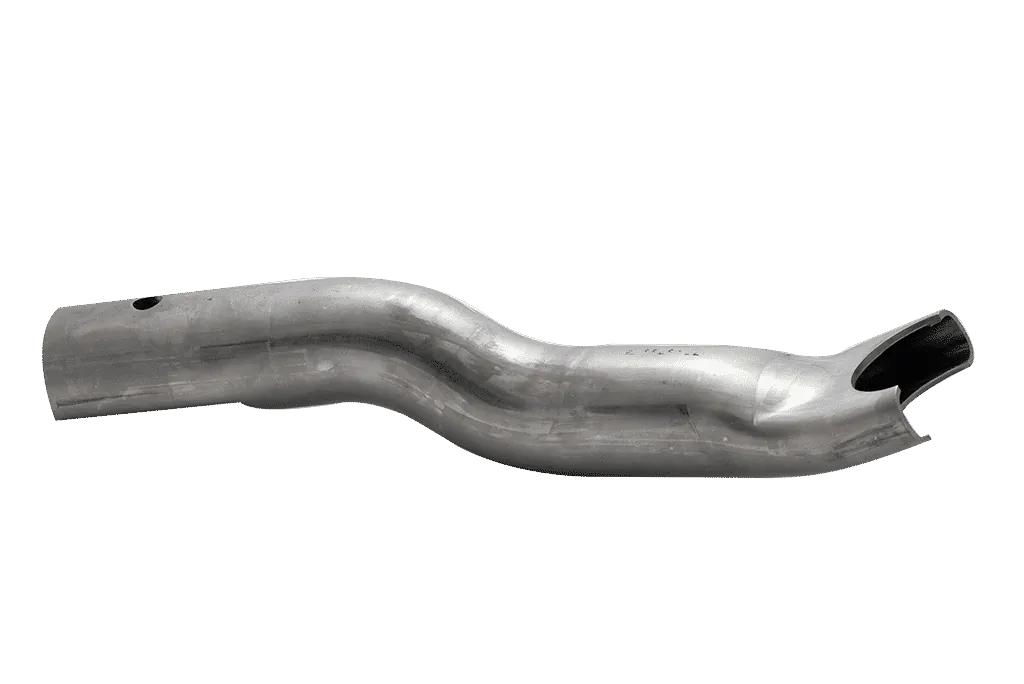

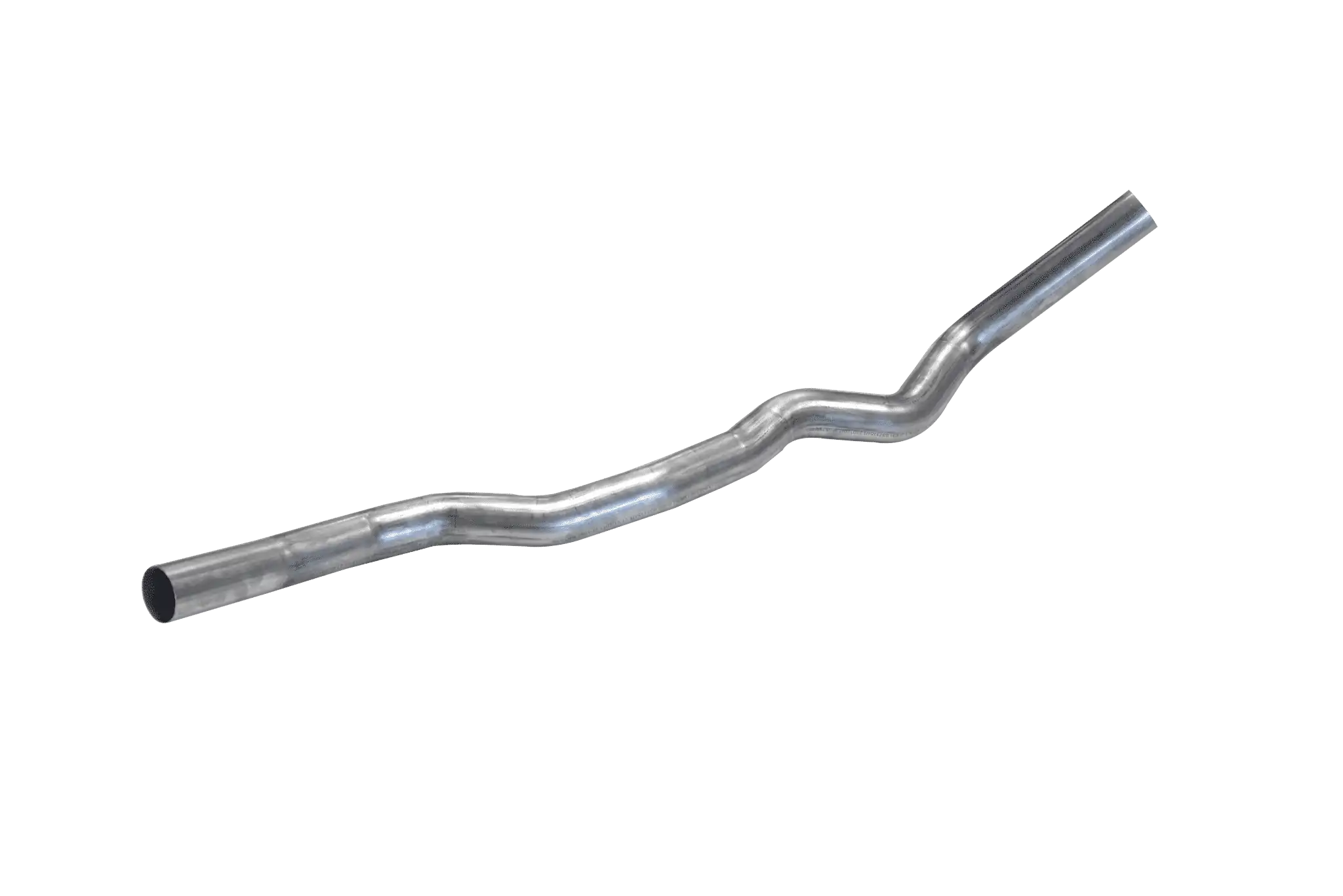

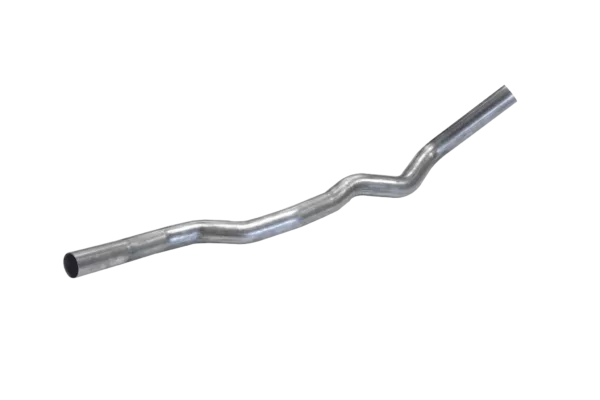

Example of parts made with the CNC tube bender TE Large
