Range : Tube bending machines

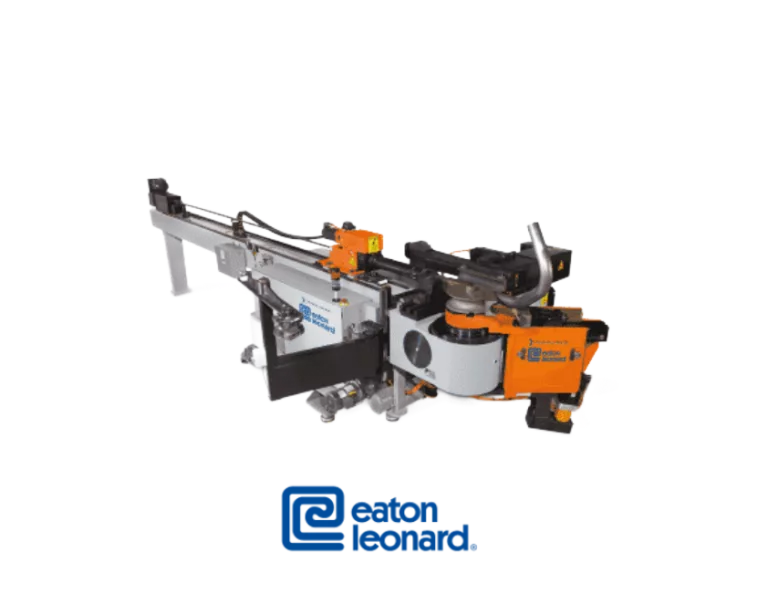

Technical Presentation of the VB LARGE

Flexible, multi stack and quick tooling changeover - Eaton Leonard

Main features

  • From Ø 1 to 6″ / 25,4 to 152 mm
  • Applications : Air and Space, Automotive, Truck and Bus, Structural Components, HVAC
  • Stackable multi-radii option
  • Touch and Form control
  • Industry standard compatible
  • Industry 4.0 compatible
  • Additional and specific options available on request

New

Eaton Leonard CNC tube benders

Man / Machine Interface

  • Industrial-Grade PC powered by user-friendly software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O available
  • Internet connection: remote assistance and diagnostics
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
VB 65 ELECVB 90 ELEC VB 110 HP VB 152 HP
Max tube OD 3.0" / 76,2 mm3.5" / 90 mm4.5" / 114 mm1" / 152 mm
Tube lenght (std.)78.0" / 2000 mm117" / 3000 mm144" / 3660 mm144" / 3660 mm
Max bending radius 10.25" / 260 mm12" / 305 mm18" / 457 mm24" / 610 mm
Bending tools Single stack standard / Multiple stack optional / Left or right rotationSingle stack standard / Multiple stack optional / Left or right rotationSingle stack standard / Multiple stack optional / Left or right rotation Single stack / Left or right rotation

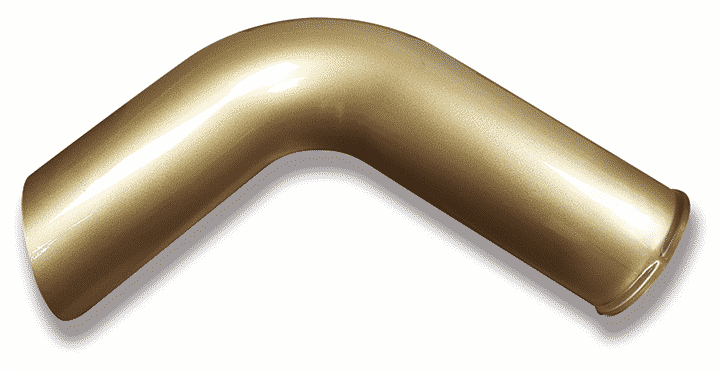

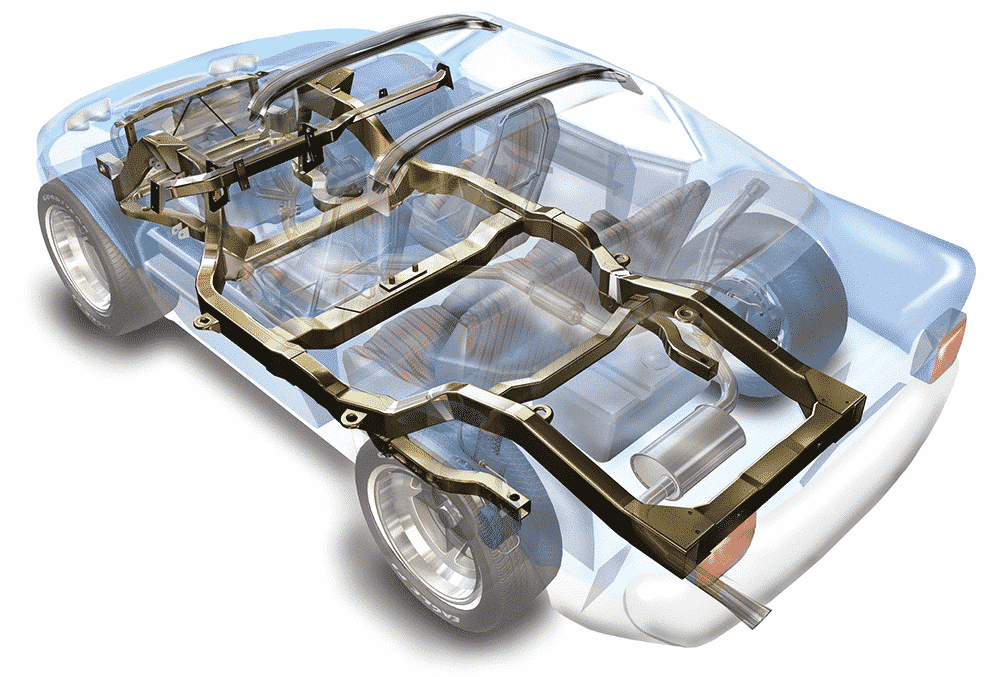

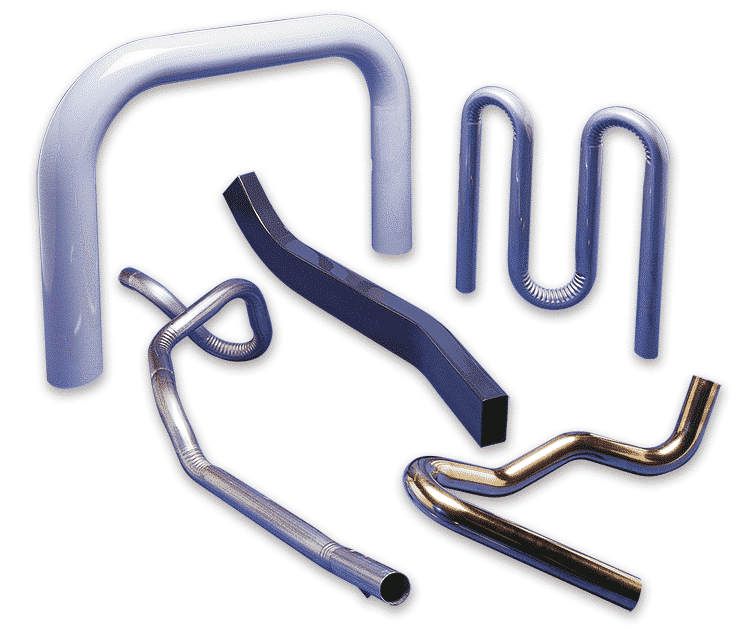

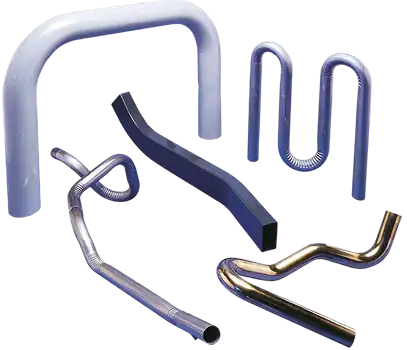

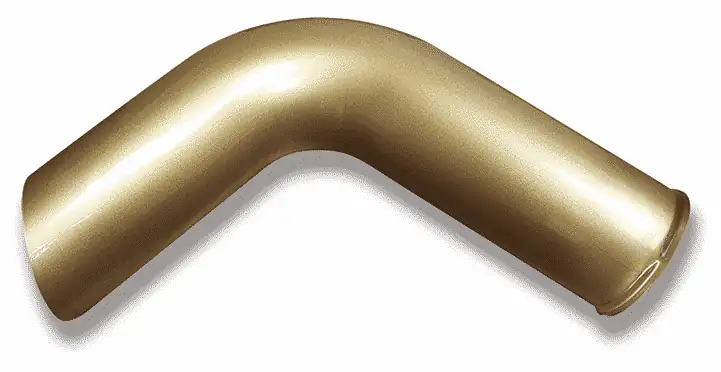

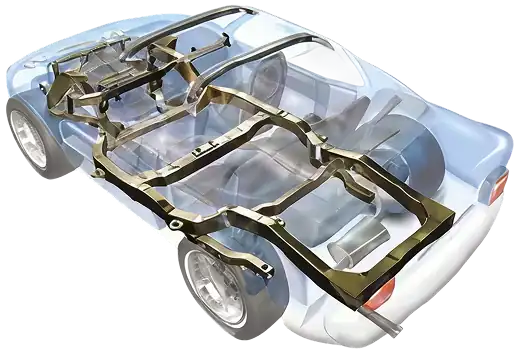

Example of parts made with the VB LARGE

Our services

Services - Télémaintenance

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the VB LARGE
