Range : Sequential machines

Technical Presentation of the automatic wire bender R4xx

5 CNC axis machine, with zero use of hydraulics, that set the trends for bending metal wire using CNC.

Main features

  • From .07 to .16″ / 1,8 to 4 mm
  • Wire
  • 3D bending starting from coil form
  • Speed and high quality manufacturing of long and symmetric parts
  • Narrow design of central clamps allows extremely short distances (from 1.97″ / 50 mm) between 2 bends. Tool working height adjustable by programming
  • Modular design that allows evolving the machine as per your needs
  • Revolving or bi plane wire straightener as per request
  • Possible to make loops at both extremities of the parts
  • Independantly functionning bending heads. Electric thermal-stabilization unit optional

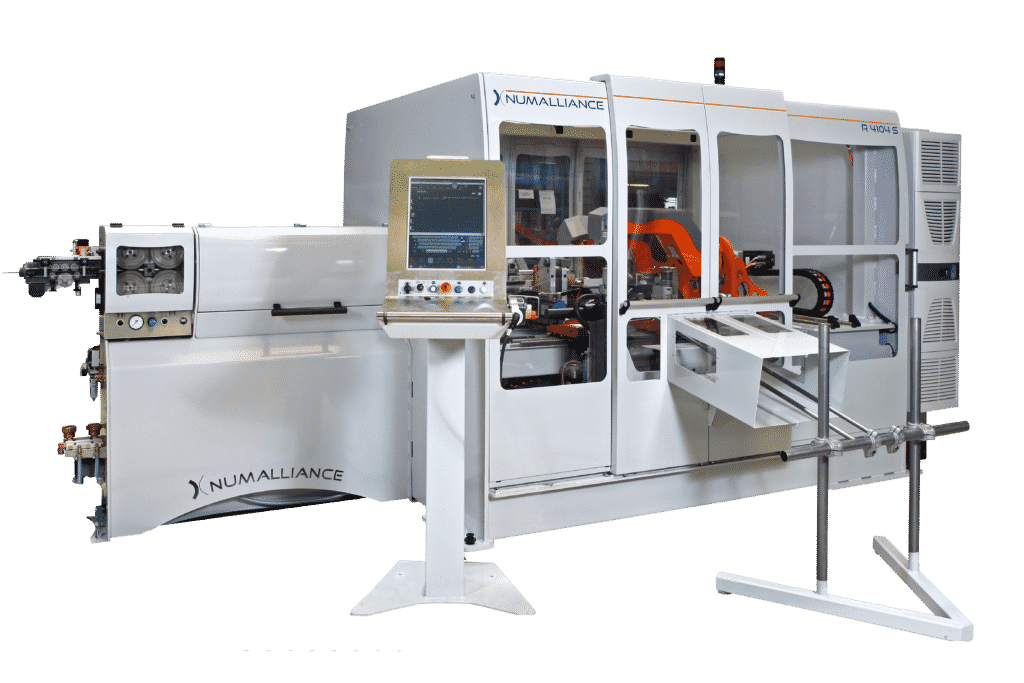

Robomac R4xx automatic CNC wire bender - Numalliance

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Simulation tool to facilitate development
  • Program sequence in slow motion

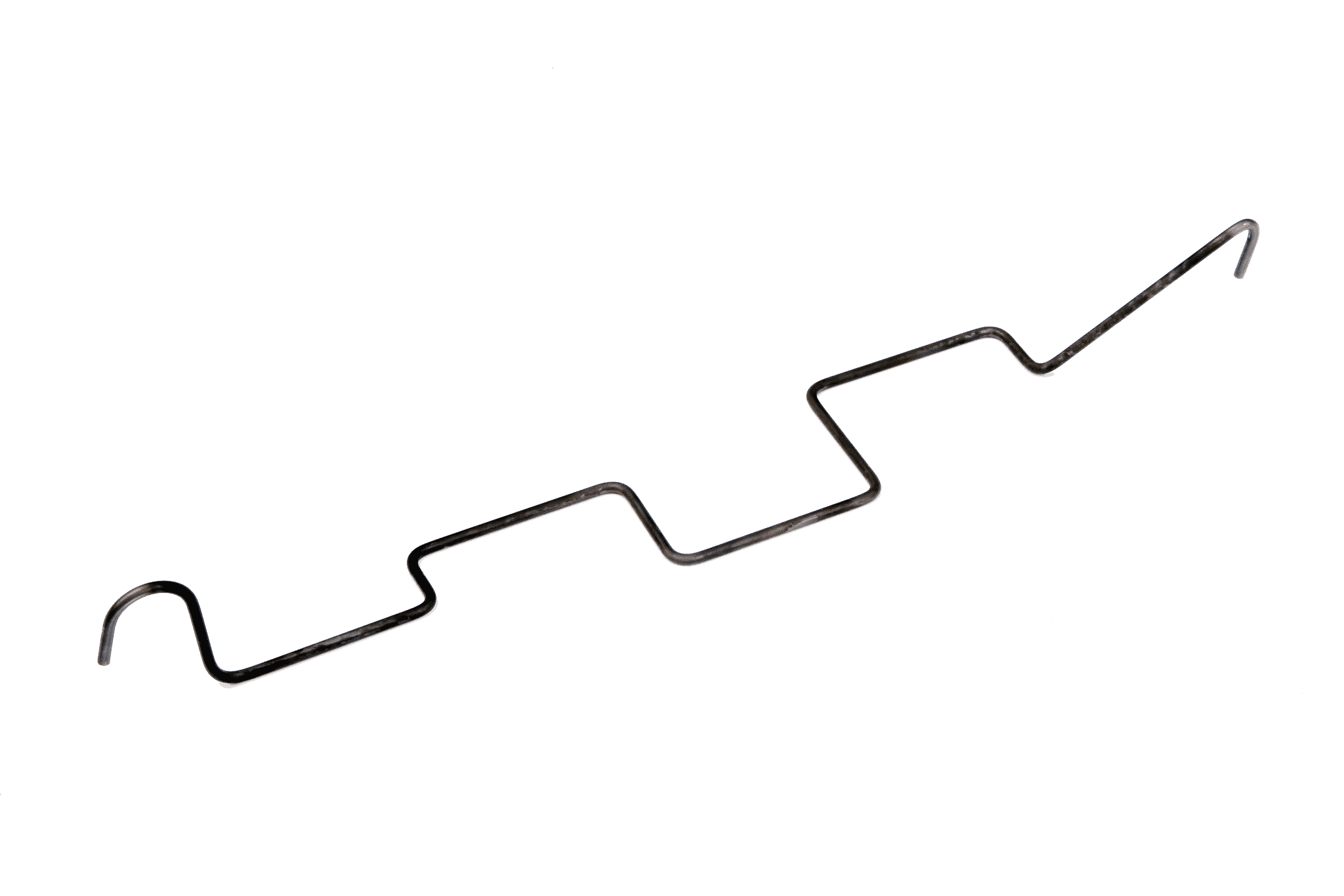

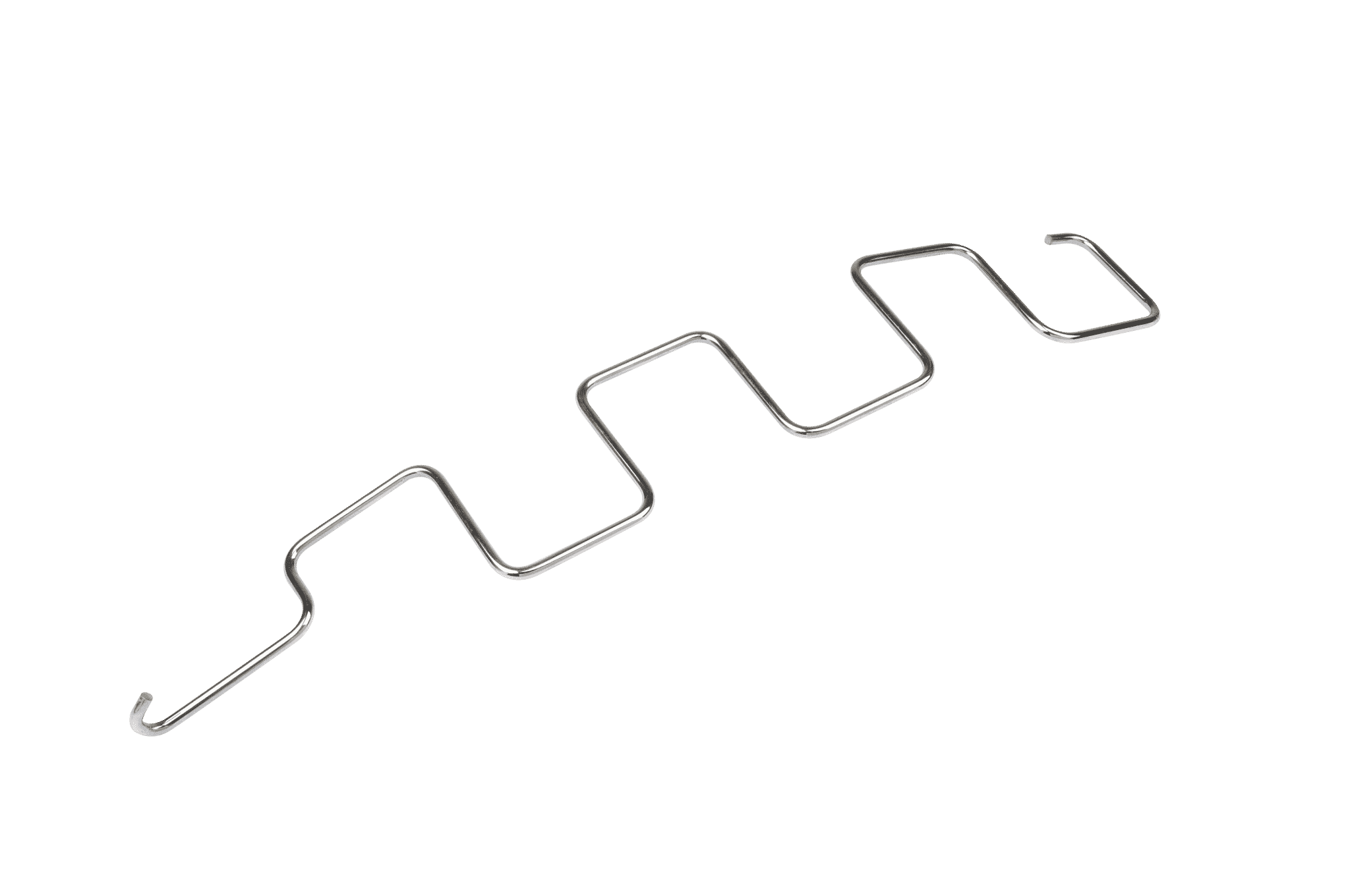

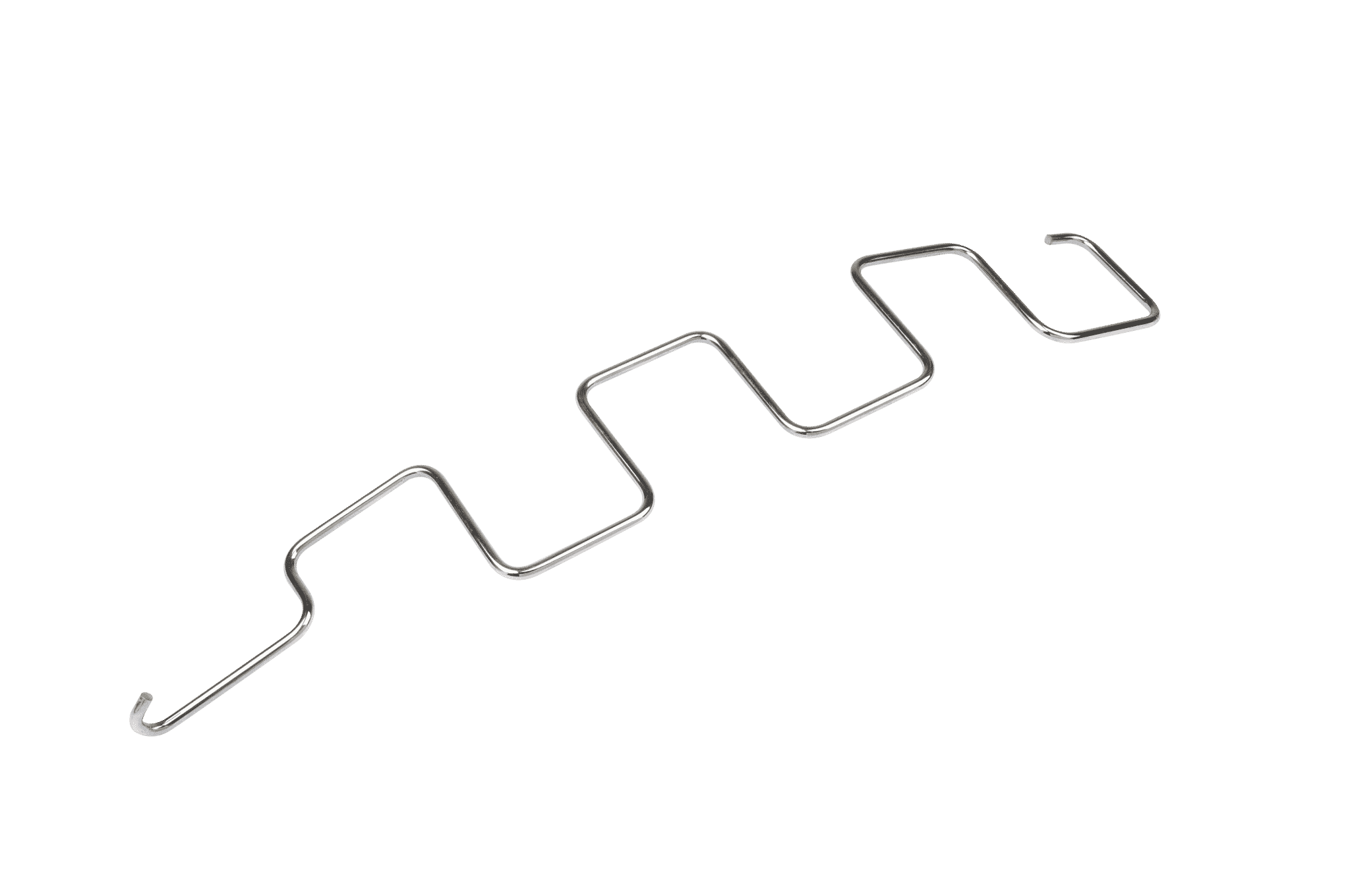

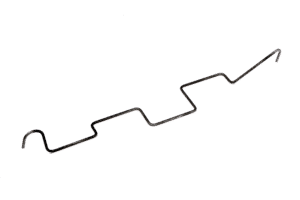

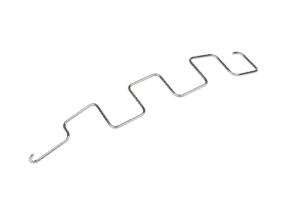

Example of parts made with the automatic wire bender R4xx

Our services

Services - Télémaintenance

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.
