Range : CNC multi-slide machines

Technical Presentation of the multi slide forming machine Numaslide

The unique camless multiple slide CNC solution.

Main features

  • From .04 to .31″ / 1 to 8 mm
  • Wire and Strip
  • 2D or 3D bending from coil
  • Top production speed
  • No cams – only programmable servo motors
  • Quick tooling / production changeover
  • Simple tooling with quick attachment onto the machine slides
  • Motors mechanical protection
  • Cycle time optimization and tooling adjustment by easy programming on touch screen
Numaslide machine automatique cintrage fil

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
Numaslide 5Numaslide 6 Numaslide 8
Wire capacity up to 600N/mm².04 to .2" / 1 to 5 mm.04 to .24" / 1 to 6 mm.08 to .31" / 2 to 8 mm
Wire capacity up to 540N/mm².04 to .21 / 1 to 5.3 mm.04 to .25" / 1 to 6.35 mm .08 to .31" / 2 to 8 mm

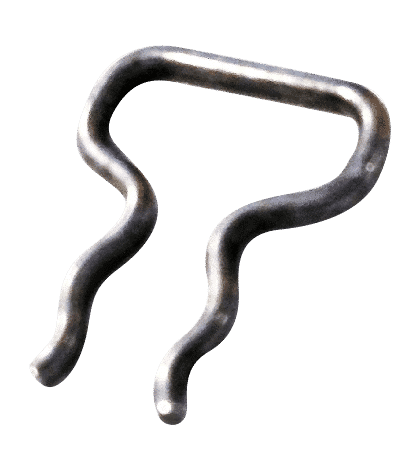

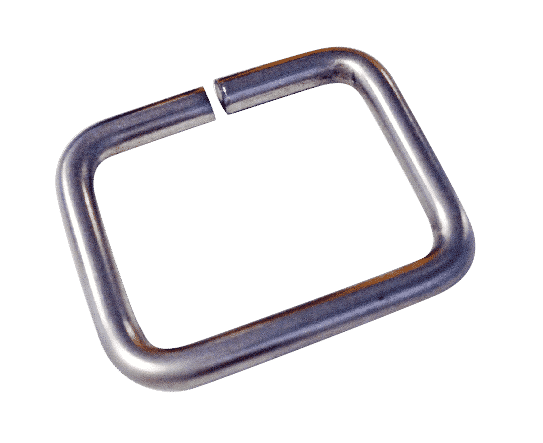

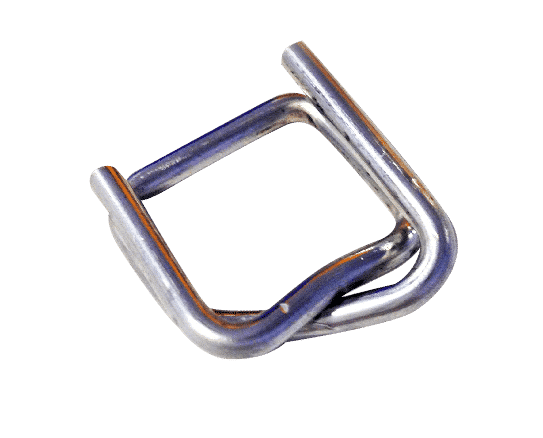

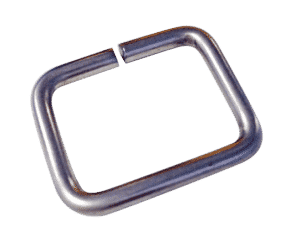

Example of parts made with the multi slide forming machine Numaslide

Our services

Services - Télémaintenance

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the multi slide forming machine Numaslide
