Range : Tube bending machines

Technical Presentation of the VB MEDIUM

Flexible, multi stack and quick tooling changeover - Eaton Leonard

Main features

  • From Ø .24 to 2.0″ / 6 to 51 mm
  • Applications : Air and Space, Automotive, HVAC, Furniture, Job shop
  • All electric benders
  • Stackable multi-radii option
  • Industry standard compatible
  • Industry 4.0 compatible
  • Touch and Form control
  • Low interference bending head
  • Automatic loading and offloading (option)
  • Additional and specific options available on request

New

Eaton Leonard electric bender

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
VB 25 ELECVB 25 ELEC DRVB 42 ELEC VB 42 HTorque
Nominal tube OD1,0x0,1" / 25,4x3 mm 1,0x0x1" / 25,4x3 mm 1,5x.08" at 58 KSI / 42,2 mm at 400N/mm²2,0x,08 at 58 KSI / 50,8x2 mm at 400N/mm²
Tube length (std.)59,0" / 1500 mm 59,0" / 1500 mm 117" / 3000 mm117,0” / 3000 mm
Max bending radius 5,0" / 125 mm 3.0" / 76,2 mm 6,0" / 150 mm150 mm (6,0") 210 mm (8,25")
Bending tools Single stack standard Multiple stack optional Left or right rotation Multiple stack standard Left and right rotation Single stack standard / Multiple stack optional / Left or right rotationSingle stack standard Multiple stack optional Left or right rotation

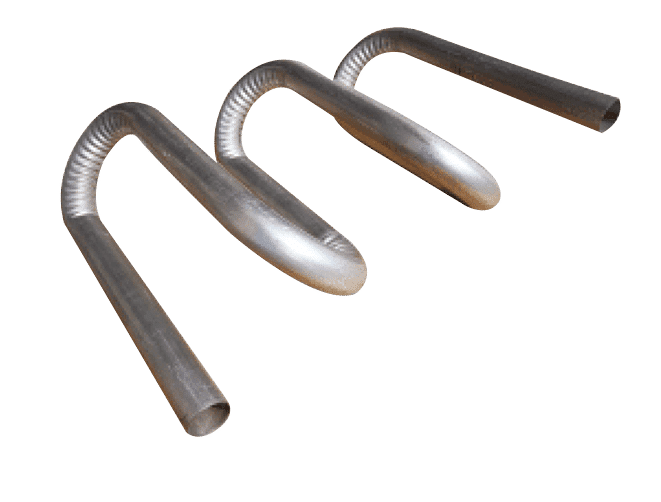

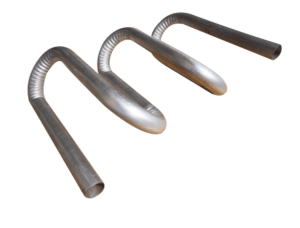

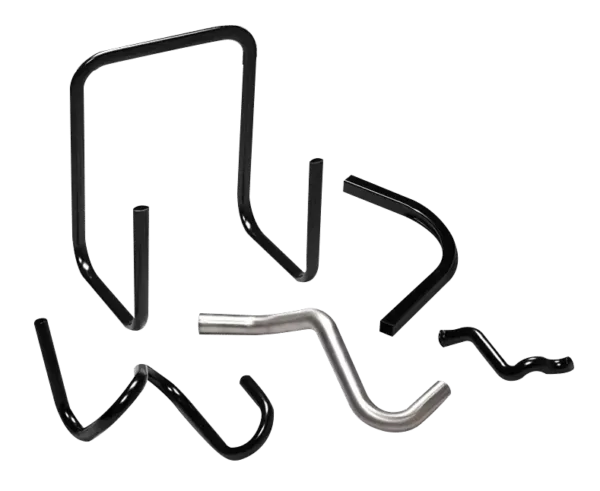

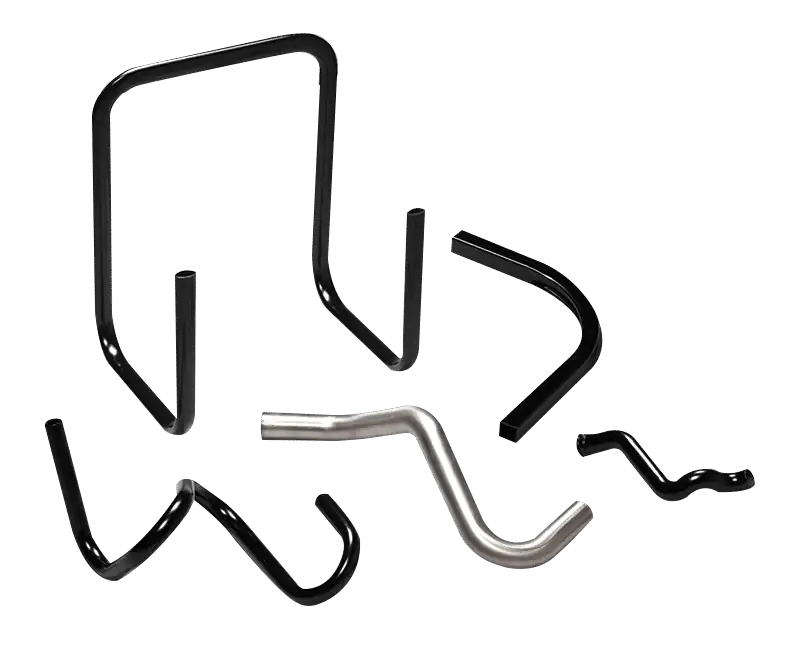

Example of parts made with the VB MEDIUM

Our services

Services - Télémaintenance

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the VB MEDIUM
