Range : Wire straightening and cutting machines

Technical Presentation of the wire cutting machine Numacut

Machine dedicated for straightening and cutting of wire in coil form.

Main features

  • From .04 to .47″ / 1 to 12 mm
  • From coil
  • Revolving straightener
  • Machine with brushless motors
  • Easy and fast programming thanks to touchscreen interface
  • Spinning straightener
  • Chamfering unit available as an option
Numacut - Machine vue ensemble - Numalliance

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
NUMACUT W05NUMACUT W08 NUMACUT W12
Wire capacity up to 550 N/mm² From .04 to .20" / 1 to 5 mmFrom .12 to .325" / 3 to 8 mmFrom .20 to .47" / 5 to 12 mm
Shortest cutting length with fixed stop.26" / 80 mm.26" / 80 mm.26" / 80 mm
Shortest cutting length without fixed stopfil ø x 1,5fil ø x 1,5fil ø x 1,5
Power25 kW 25 kW25 kW
Machine footprint13.8x5.7x5" / 4200x1750x1500 mm13.8x5.7x5" / 4200x1750x1500 mm13.8x5.7x5" / 4200x1750x1500 mm
Weight2000 kg2000 kg2000 kg

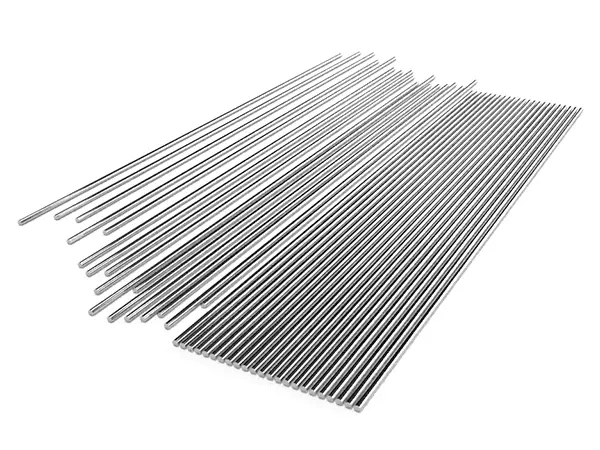

Example of parts made with the wire cutting machine Numacut
