Range : Sequential machines

Technical Presentation of the CNC spring forming machine FRX

The missing piece of the puzzle between wire bending and spring forming was found with the FRX.

Main features

  • From .032″ to .236″ / 0,8 to 6 mm
  • Wire Forms, Compression, Torsion and Extension spring
  • 3D bending from coil
  • Multifaceted tool also for complex parts (multi-axis interpolation)
  • Production of small to medium size quantities
  • Quick production changeover
  • Robotized bending arm with unlimited rotation around wire to avoid torsional stress
  • Optional – coiling detection system
FRX - Machine vue ensemble - Numalliance

Man / Machine Interface

  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
Wire capacity up to 1800N/mm².032" to .182" / 0,8 to 4 mm .048" to .158" / 1,2 to 4 mm
Wire capacity up to 600N/mm².032" to .156" / 0,8 to 4 mm.048" to .236" / 1,2 to 6 mm

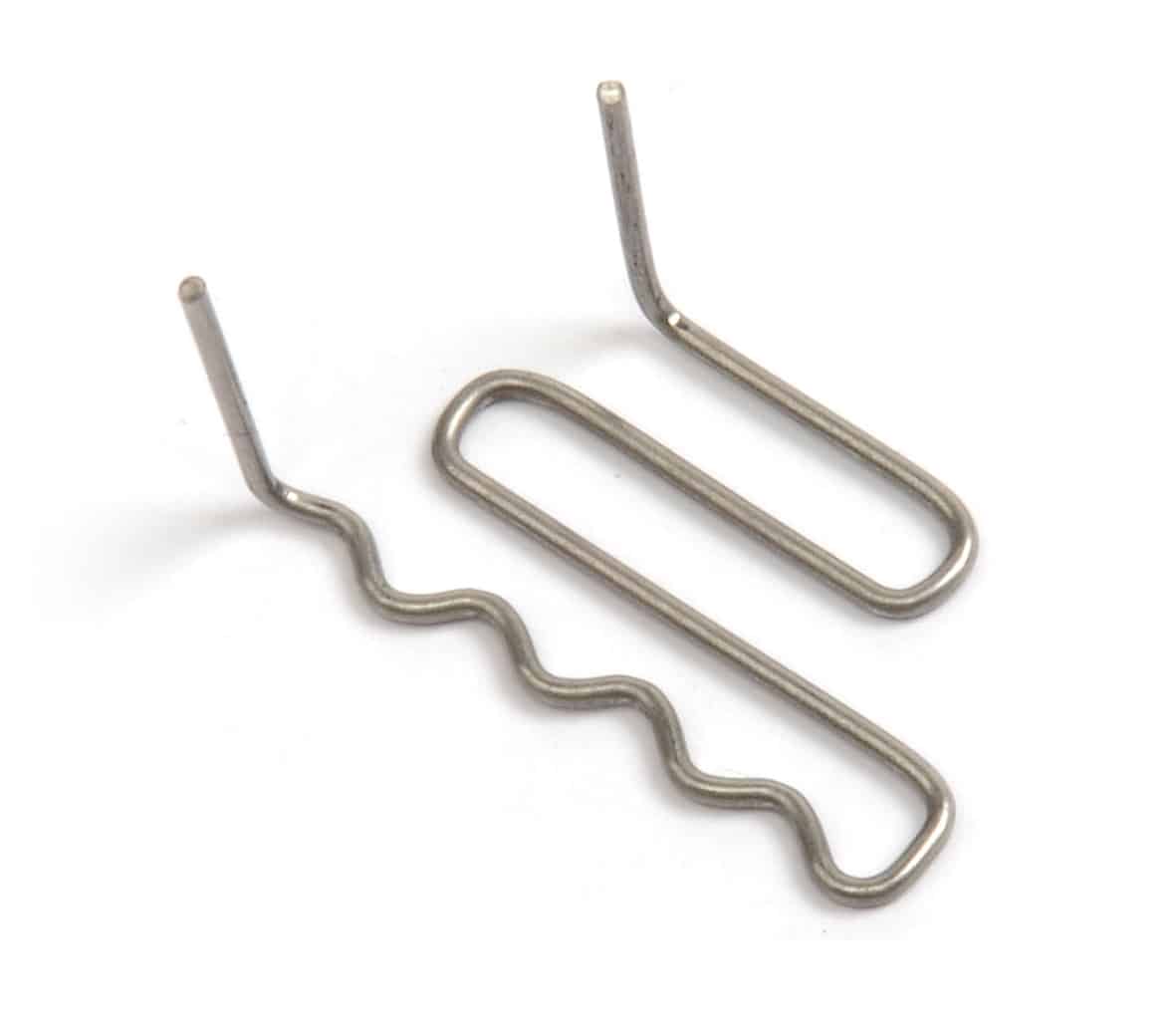

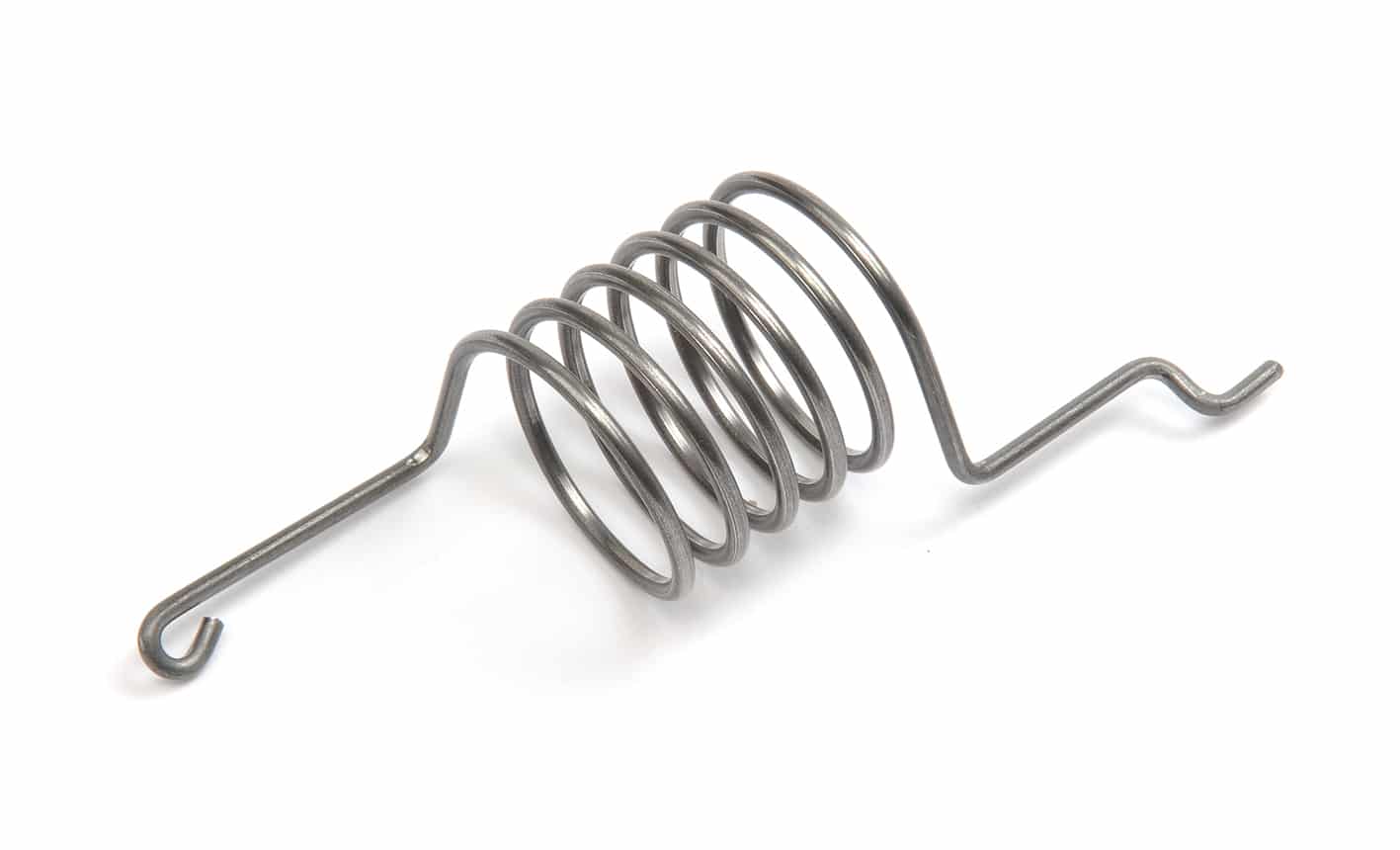

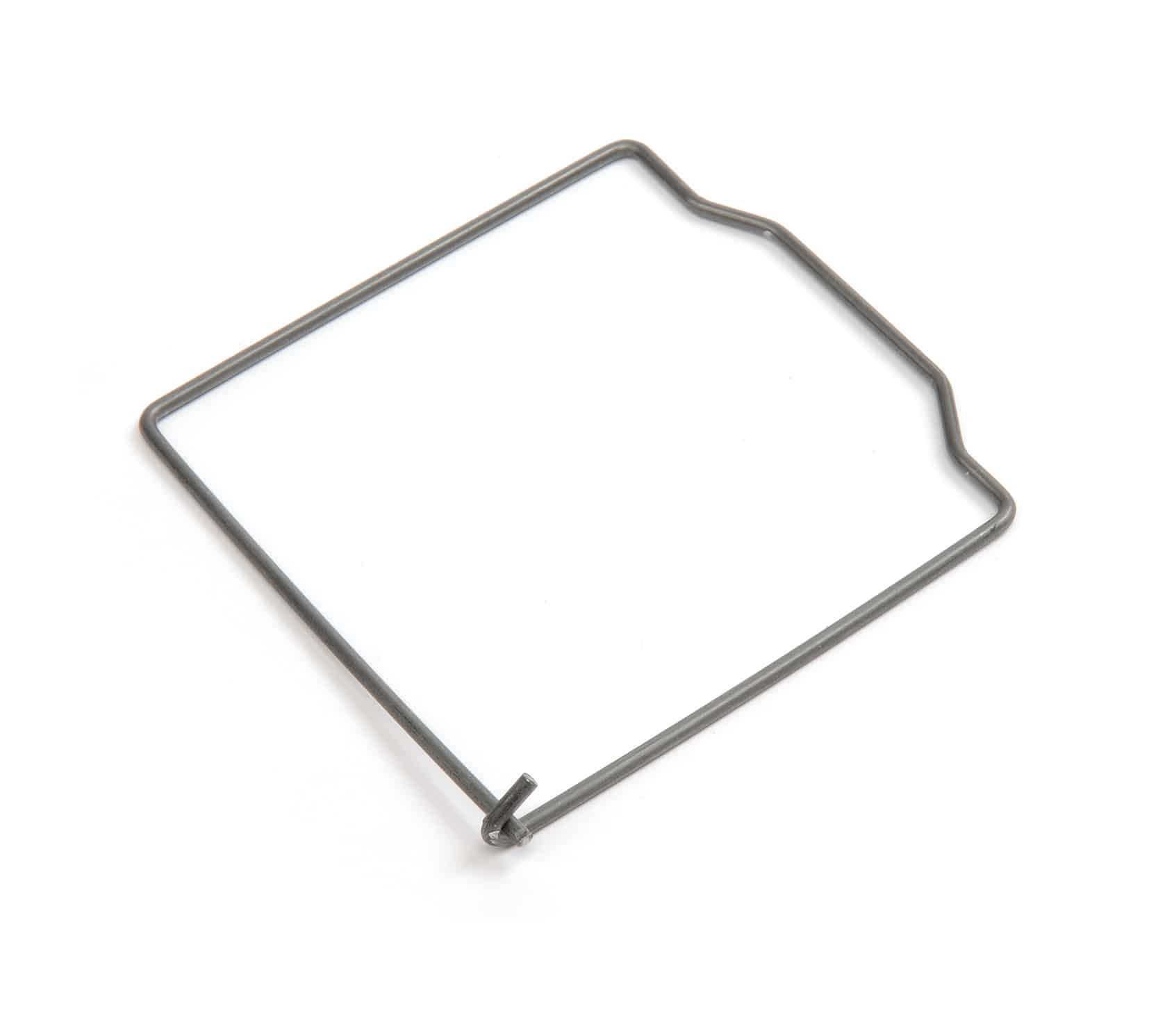

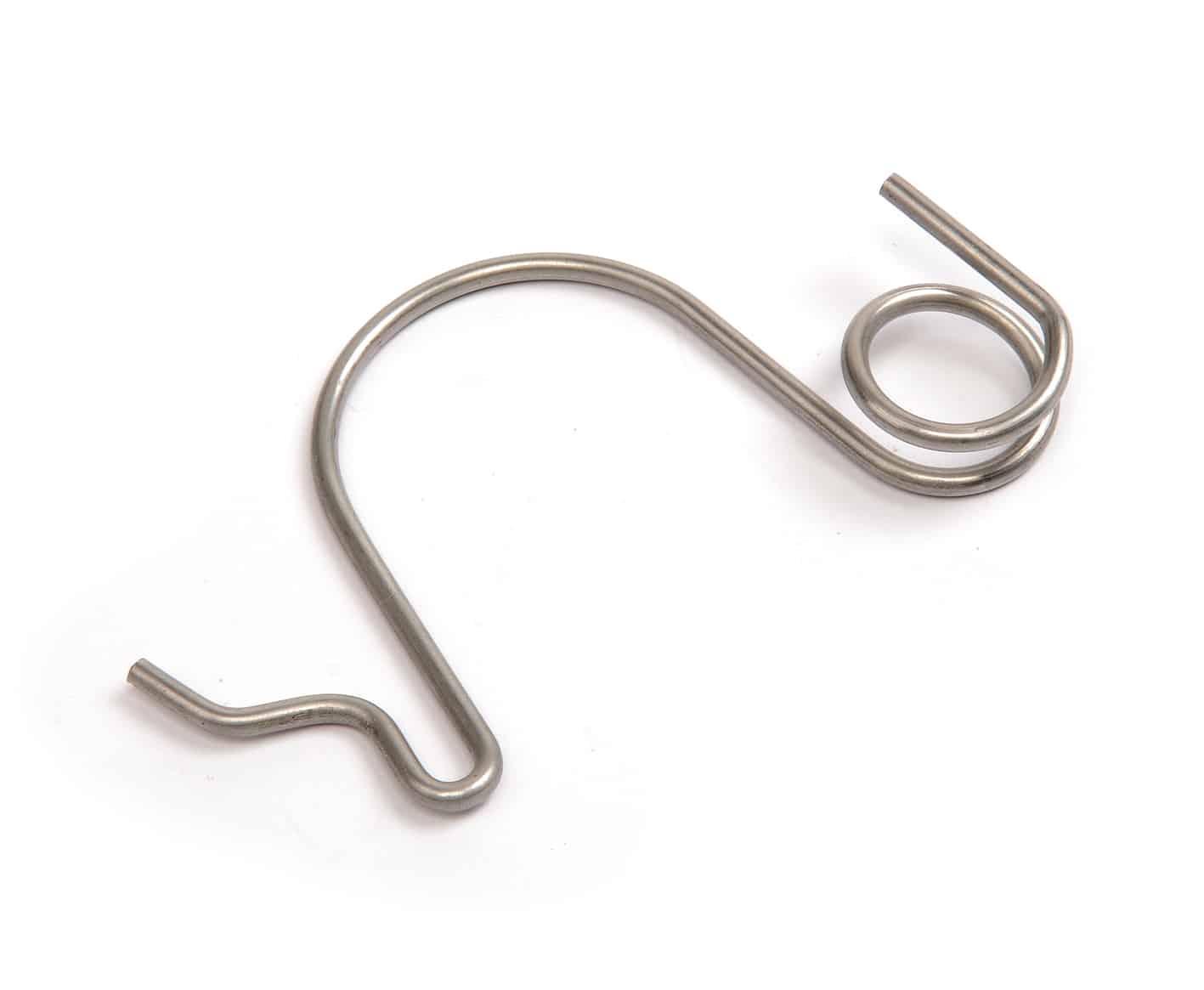

Example of parts made with the CNC spring forming machine FRX

Our services

Services - Télémaintenance


With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

Numalliance - pièces de rechange


Spare parts are available in various locations throughout the world, ready for immediate delivery.

Service - Logistique


NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

Services - Formation


We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

Numalliance - Faisabilité


Our Engineering team helps you with parts feasibility and tooling design, at your request.

Services - Contrat de maintenance


Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the CNC spring forming machine FRX
