Technical presentation of the e-P
Key features
- Press technologies: electrical axis with high efficiency, speed,
accuracy and dynamic movement - Compact and easy integration into automatic cell
- Multilingual dialog and programming interface on a 12’’
touch screen - Multi-Function control panel
- Safety brakes
- Full tonnage throughout the stroke
- Real time effort control
- Integrated operations tooling
- Remote control assistance
- User-friendly programming software – skynet
- Predictive maintenance – real time efforts measurements
New
Benefits of electrics
- Clean and quiet operation
- Energy savings
- High accuracy and repeatability
- Variable kinematics
- Controlled forming speed and position
- Low maintenance
- Full control on all speed range
| e-P50 | e-P100 | |
|---|---|---|
| Press Types | H-frame | H-frame |
| Maximum force | 50T | 100T |
| Moving part | Upper platen | Upper platen |
| Tables/Platens dimensions | 1000 x 800 mm | 1000 x 800 mm |
| Features of the tables / platens | T-slotes | T-slotes |
| Stroke | 500 mm | 500 mm |
| Daylight | 800 mm | 800 mm |
| Fast Approach speed | 200 mm/s | 200 mm/s |
| Automation / Display | Skynet / 12" | Skynet / 12" |
| Pressure sensor | Force sensor | Force sensor |
| Operator safety (option) | Side panels + SICK light curtains Front | Side panels + SICK light curtains Front |
| Safety | SITEMA | SITEMA |
| Dimensions | 1710x1280x3500mm | 1710x1280x3500mm |
| Weight | 8T | 9T |

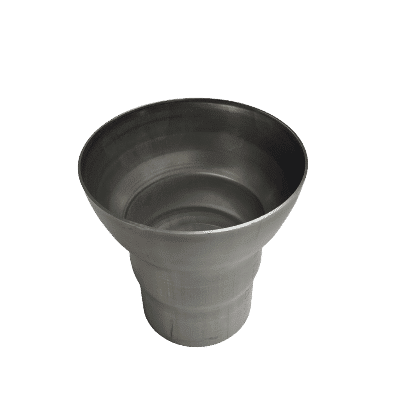

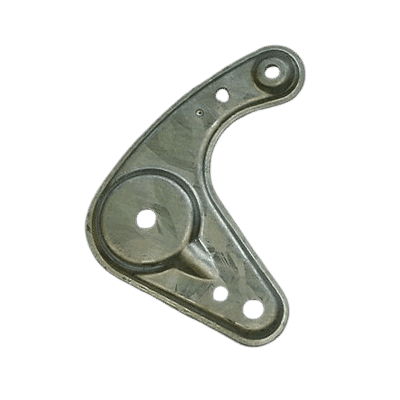

Example of parts made with the e-P
Discover our other CNC machines
Our services
REMOTE ASSISTANCE
With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.
SPARE PARTS
Spare parts are available in various locations throughout the world, ready for immediate delivery.
SHIPPING, COMMISSIONING & START UP ASSISTANCE
NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.
INITIAL & COMPLEMENTARY TRAINING
We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.
FEASIBILITY & TOOLING DESIGN
Our Engineering team helps you with parts feasibility and tooling design, at your request.
MAINTENANCE CONTRACT
Get the most most uptime for your Numalliance-customized equipment with after-sales services contract.
Download the documentation of the e-P
