Specialized in the production of bending tools for more than half a century, Numalliance group posseses numerous patents in the world of tube bending and still keeps innovating! Our latest innovation, focussed at one of the tools necessary for bending, is already changing the world of tube bending… Discover our Integrated Wiper Die.

Tube tools for complex tube bending – Rotary Draw Bending

Different types of bending components exists (see image on the right) but Numalliance Tube bending machines generally use Rotary Draw Bending.

  • Bend die, the part around which tube is bent
  • Pressure die has a long cylindrical groove that holds the tube in place and provides horizontal support during the bending operation.
  • Clamp die is mounted to the clamping arm which moves towards the bend die to tighten and secure the tube in the groove of the bend die and to prevent the tube from slipping during the bending operation
  • Wiper die (optional) prevents wrinkles from forming at the inside of the bend. It is fitted into the groove of the bend die to hold the tube and guide it into the bend.
  • The mandrel (optional) is positioned inside the tube, close to the deformation zone, to improve bend quality by preventing the tube’s outer wall from flattening or ovalizing.

Wiper Die

The wiper die is an important part of the bending process, as the final quality of the part depends on this tool. It allows the material on the inside of the bend to be spread out uniformly during the bending operation thus preventing wrinkles. It is a wear part that must be changed regularly. The correct setting of this tool is important for a clean bend and increased wiper die life. Therefore, its installation by experienced operators is a must.

All these features combined led to the development of a wiper die bend integrated into the bend die. This innovation has been patented worldwide and has been awarded with the Global Industry Award.

Bent tubes aspect parts
Aspect parts
Avoid wrinkles
Avoid tube breakages

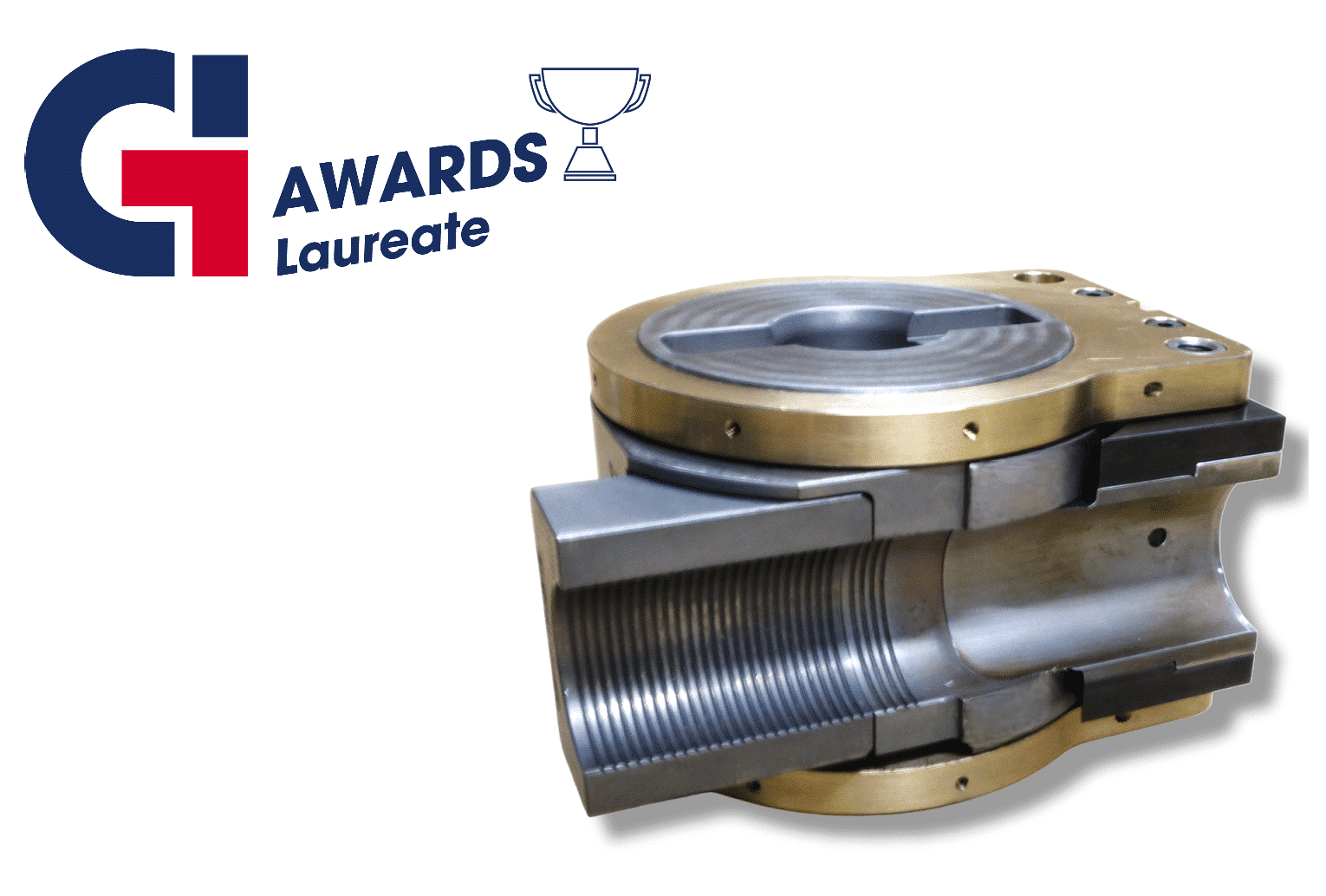

Bend die with integrated Wiper Die

Set up time eliminated

This new tool eliminates the need to set up wiper die postion therefore improving tooling changeover time, repeatibility and part quality.

Material and energy savings

The design of the integrated wiper die contributes to its rigidity and reduces the wear and tear of the tool considerably. As a result, it greatly increases wiper die life thus reducing its consumption. All these advantages also reduce the quantity of raw material used to produce the wiper die. Consumption of tube is also reduced due to lower rejection as there are less adjustments to do and lower risk of wrong settings.

Compatible with automatic tool changeover

Fully designed to be integrated into automated cells, this tool can moreover be easily changed with a robot. Its design fully meets the requirements of Industry 4.0.
