Range : Sequential machines

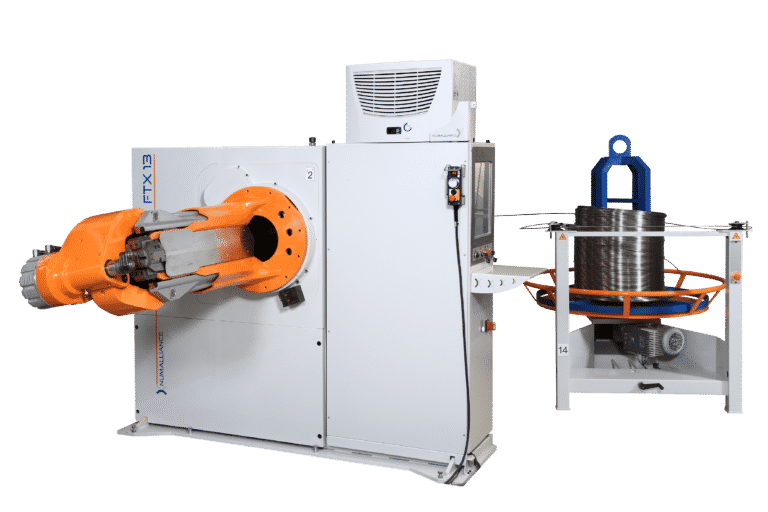

Technical Presentation of the CNC bending machine FTX
The most advanced bending technology.
Main features
- From .12 to .625″ / 3 to 16 mm
- Wire and tube
- 3D bending from coil
- Double bend
- The most advanced bending technology
- Bending head moving freely around the material
- 1 bending head with multiple radii
- Simple and easy to configure tooling
- Single minute exchange tooling
- Integrated safety gate system
- 7 digital axes
Man / Machine Interface
- Industrial-Grade PC powered by proprietary software
- Multilingual dialog and programming interface on a 19″ touch screen
- Simulation program
- Additional I/O
- Internet connection : remote assistance and chat room
- Auto-corrective feedback from 3D-measuring devices
- Tool editor allows programming of complex parts
- Simulation tool to facilitate part set-up
- Program execution in slow motion
| FTX08 G4 | FTX10 G4 | FTX13 G4 | FTX 13 G8 | FTX 14 G8 | FTX16 G8 | |
|---|---|---|---|---|---|---|
| Wire capacity at 600 N/mm² or 85 Ksi | .10 to .325" / 2,5 to 8 mm | .12 to .375" / 3 to 10 mm | .16 to .50" / 4 to 13 mm | .16 to .50" / 4 to 13 mm | .16 to .55" / 4 to 14 mm | .20 to .625" / 5 to 16 mm |

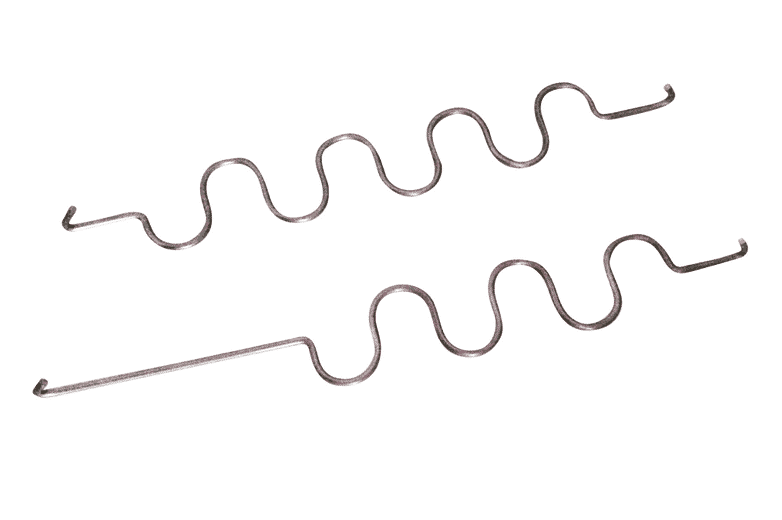

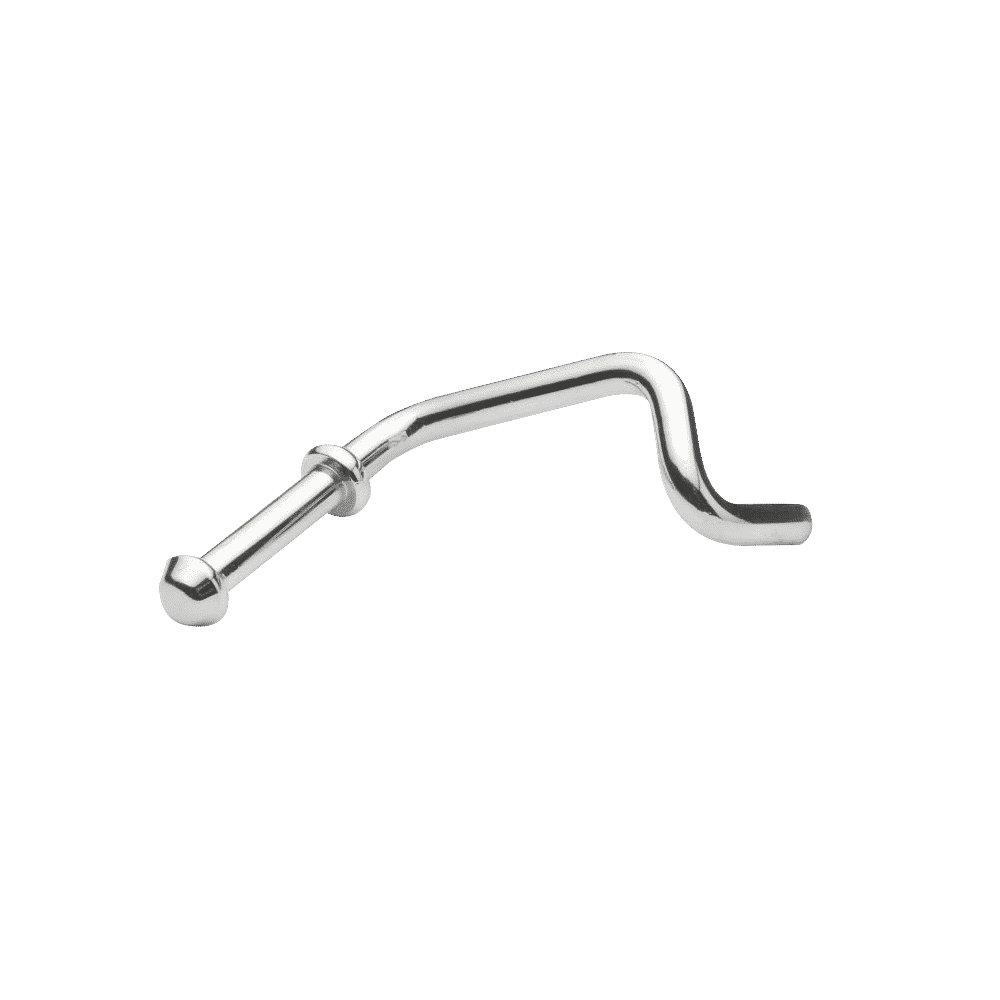

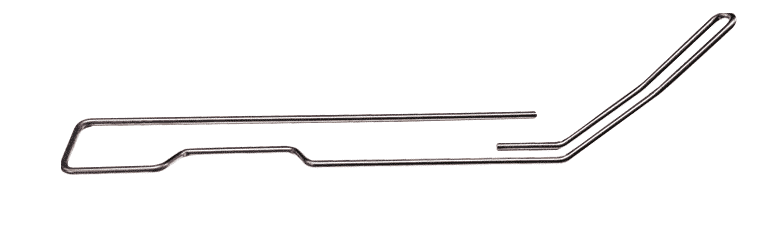

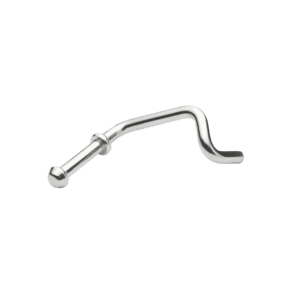

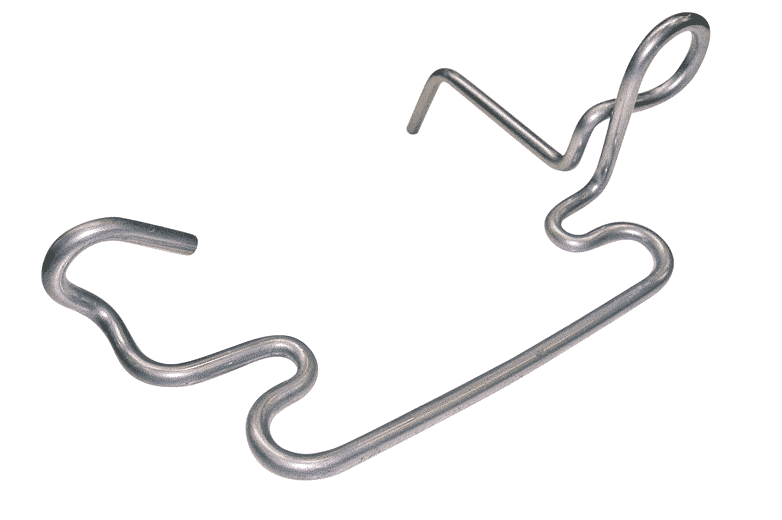

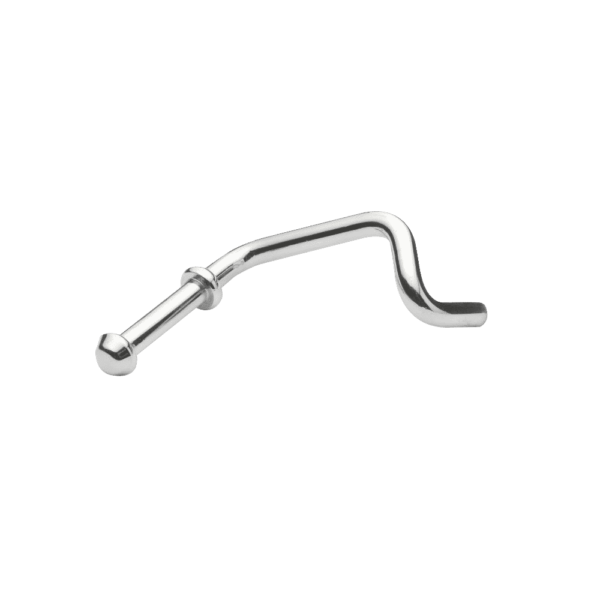

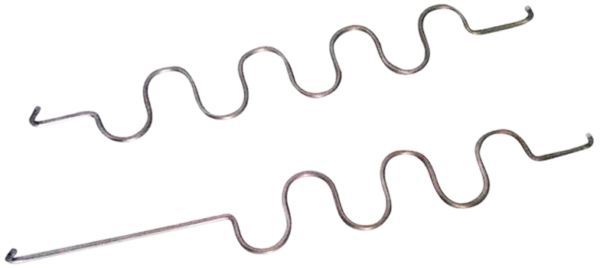

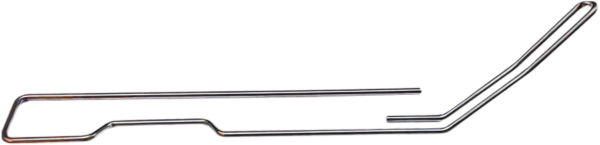

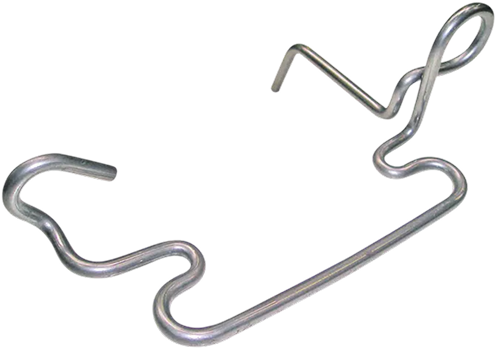

Example of parts made with the CNC bending machine FTX
