Range : Tube bending machines

Technical Presentation of the VB SMALL

Flexible, multi stack and quick tooling changeover - Eaton Leonard

Main features

  • From Ø .12 to .75″ / 3 to 19 mm
  • Applications : Air and craft, Automotive, HVAC
  • All electric benders
  • Stackable multi-radii
  • Touch and Form control
  • Industry standard compatible
  • Low interference bending head
  • Automatic loading and Offloading (Option)
  • Industry 4.0 compatible
  • Additional and specific options available on request
Eaton Leonard tube bending machine VB Small

Man / Machine Interface

  • Industrial-Grade PC powered by user-friendly software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O available
  • Internet connection: remote assistance and diagnostics
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
VB 19 ELEC
Nominal tube OD .625" / 16 mm
Max tube OD .75" / 19 mm
Tube lenght (std.)59" / 1500 mm
Max bending radius4" / 102 mm
Bending tools Single stack standard / Multiple stack optional / Left or right rotation

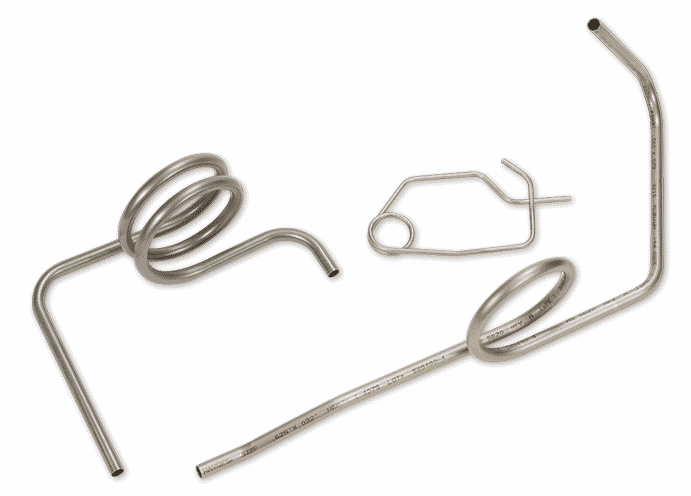

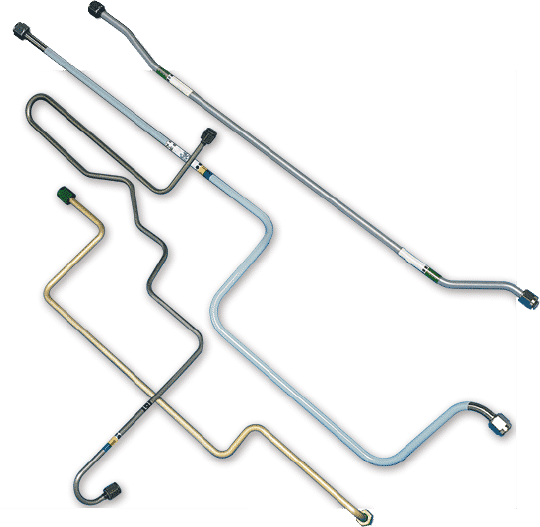

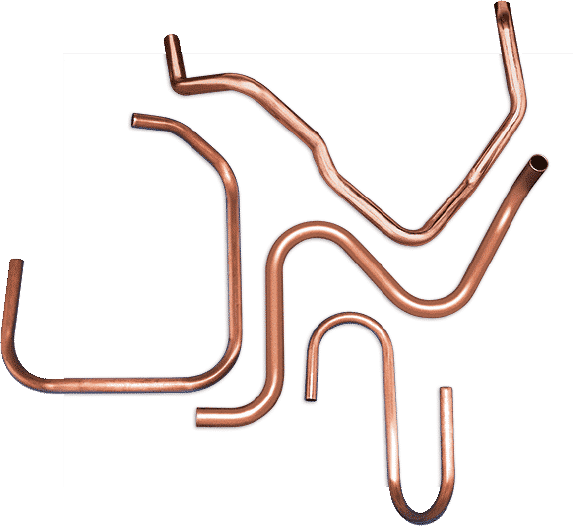

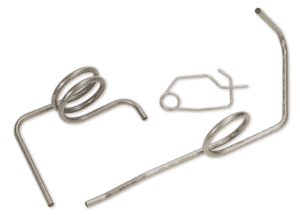

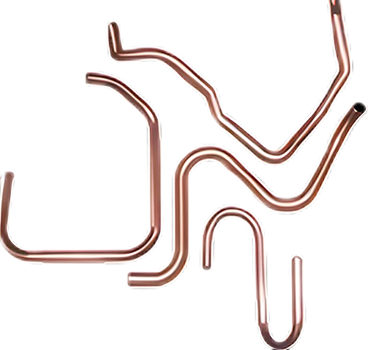

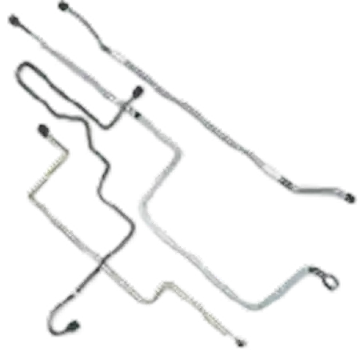

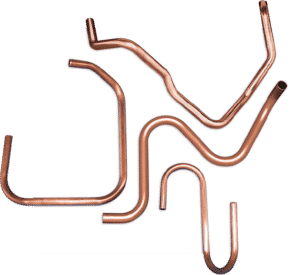

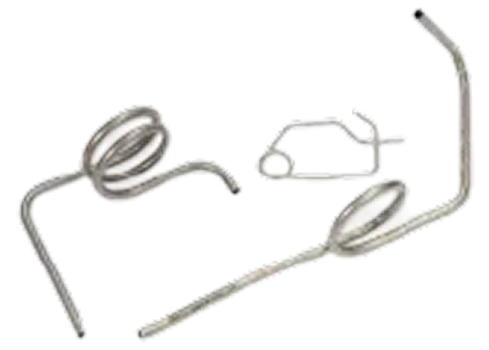

Example of parts made with the VB SMALL

Our services

REMOTE ASSISTANCE

With internet connection we can remotely establish an accurate diagnostics and troubleshoot your machine.

SPARE PARTS

Spare parts are available in various locations throughout the world, ready for immediate delivery.

SHIPPING, COMMISSIONING & START UP ASSISTANCE

NUMALLIANCE offers logistics service to ship equipment to your door and can offer assistance at start up and ramp up phase.

INITIAL & COMPLEMENTARY TRAINING

We provide initial training for your production, as well as maintenance teams at machine start and throughout the lifetime of your machine.

FEASIBILITY & TOOLING DESIGN

Our Engineering team helps you with parts feasibility and tooling design, at your request.

MAINTENANCE CONTRACT

Get the most most uptime for your Numalliance-customized equipment  with after-sales services contract.

Download the documentation of the VB SMALL
